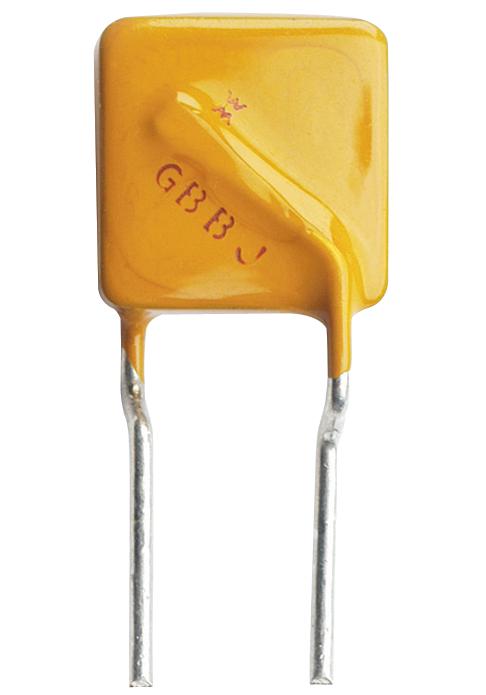

Littelfuse F95456000 Network Protection Device
This product is a telecommunications and networking overcurrent protection device designed for various applications including modems, PBX systems, fax machines, DSL splitters, and VoIP equipment. It offers fast trip times, low resistance, and complies with industry standards such as UL, CSA, TUV, and RoHS. Available in chip, surface-mount, and radial-leaded forms, these resettable devices protect equipment from power surges, cross, and induction surges, enhancing reliability and regulatory compliance for customer premise and network equipment worldwide.
Littelfuse F95456000 Network Protection Device Specifications:
- Form Factors: chip, surface-mount, radial-leaded
- Voltage Ratings: 250V ac, 600V ac, 600V in interruptable products
- Hold Current Range: from 0.055A to 0.250A depending on model
- Interrupt Voltage: 250V, 600V, 800V for different models
- Maximum Fault Current: from 3.0A to 10A depending on type
- Resistance Range: resistance-sorted and resistance-matched options available, within specified tolerance
- Operating Temperature Range: -40°C to 85°C, models with 0°C to 85°C
- Agency Recognition: UL, CSA, TUV, RoHS, ELV
- Dimensions vary by form factor and model, with dense packaging for high-volume electronics
- Soldering Characteristics: ANSI/J-STD-002, IEC standards, withstands temperatures up to 260°C for 10 seconds.
- Environmental Testing: humidity, thermal shock, solvent resistance, and passive aging
- Compliance: RoHS and ELV compliant, designed to pass TIA, UL, IEC, and Telcordia industry standards
Buy the Buy TE Telecommunication Network Protection Part Number F95456000 Online
Purchase the TE network protection device F95456000 online today to safeguard your telecommunication systems against power surges, cross, and induction surges. Featuring fast trip times, low resistance, and high compatibility with industry standards such as UL, CSA, TUV, and RoHS, this device enhances the reliability and compliance of customer premise and network equipment. Ideal for modems, VoIP, DSL splitters, PBX systems, and analog or digital line cards, it ensures long-lasting performance and safety for critical telecommunication infrastructure. Buy now for maximum system protection.
Get TE protection device F95456000 today—built for fast trip times, high reliability, and regulatory compliance for network equipment.
Frequently Asked Questions
Where can I buy Littelfuse F95456000?
You can click on the BUY or RFQ button to purchase F95456000 from an authorized Littelfuse distributor.
How do I troubleshoot issues or seek technical support for part F95456000?
You can download the F95456000 datasheet or visit the Littelfuse website for support.
Who is the manufacturer of F95456000?
Littelfuse
