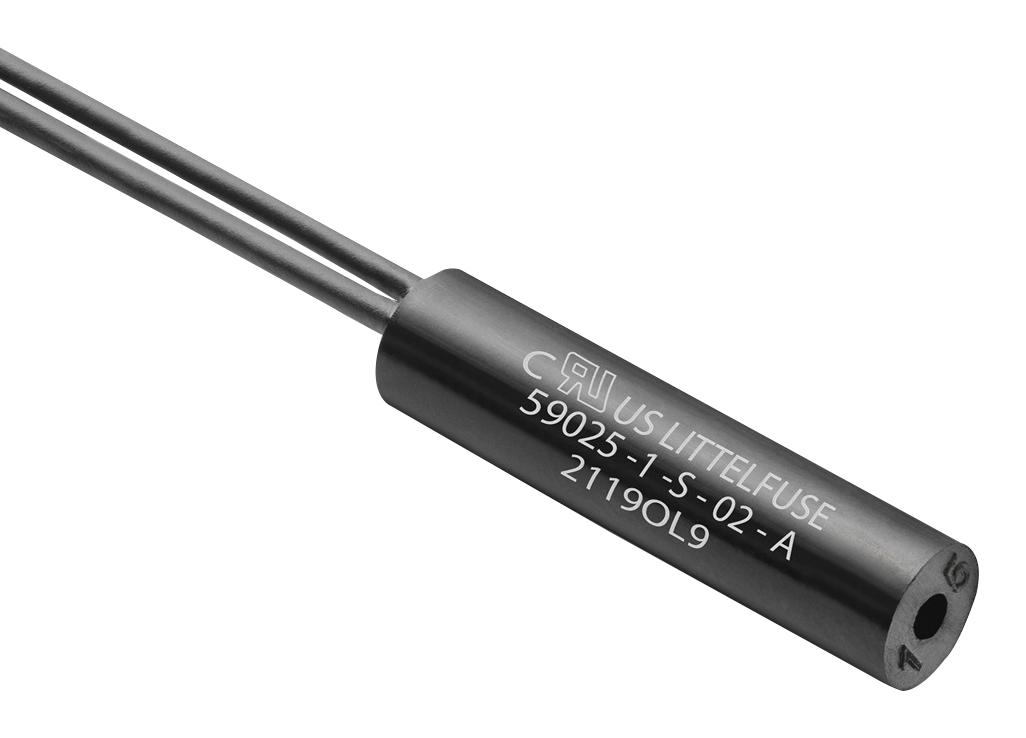

Littelfuse 590251S05A Reed Sensor
The 59025 Reed Sensor is a compact, hermetically sealed, P67 rated non-contact switching device ideal for wet and harsh environments. Measuring 25.4 mm in length and 6.22 mm in diameter, it features various contact configurations including normally open, normally closed, and change-over options. It can operate through non-ferrous materials such as plastic, wood, or aluminum, making it suitable for security, automation, and industrial applications. UL recognized, it provides reliable, leakage-current-free switching essential for energy management and IoT systems.
Littelfuse 590251S05A Reed Sensor Specifications:
- Dimensions: 25.4 mm (L) x 6.22 mm (Dia.)
- Housing Material: PBT with 30% glass fiber
- Sealing: P67 rated, hermetically sealed
- Operating Voltage: Up to 265 Vac/300 Vde at 10 VA
- Contact Type: Normally open, normally closed, change-over
- Switching Voltage: Max. 265 Vac / 300 Vde
- Switching Current: Max. 0.35 Aac, 10 VA
- Operate Time: Max. 1.0 ms
- Release Time: Max. 1.0 ms
- Operating Temperature: -40°C to +105°C
- Shock Resistance: Max. 100 G
- Vibration Resistance: Max. 30 G (50-2000 Hz)
- Certifications: UL Recognized, CSA
- Cable Options: Tinned leads with various lengths up to 1000 mm
- Sensor Functionality: Suitable for proximity detection, limit sensing, and industrial automation
- Application: Designed for use in factory automation, security, process equipment, and IoT devices
Buy the Littelfuse 59025 U+2013 Reliable Reed Switch for Industrial Applications
Invest in the Littelfuse 59025 reed sensor today to optimize your automation and security systems. This hermetically sealed, compact switch operates reliably in harsh environments and through non-ferrous materials. With various contact configurations and UL recognition, it ensures safe, low-leakage switching for energy management, IoT, and factory automation. Its high-quality construction and customizable options make it suitable for a wide range of industrial applications. Purchase online now to benefit from fast delivery and trusted performance in your critical projects.
Order your Littelfuse 59025 reed sensor today and enhance your industrial automation projects with dependable, non-contact switching performance.
