Littelfuse IXTN600N04T2 Power MOSFET
The IXTN600N04T2 is a high-performance N-Channel Enhancement Mode Power MOSFET, designed for fast switching and high current handling capabilities. Its Avalanche Rated intrinsic diode, high operating temperature of 175°C, and isolation voltage of 2500 V~ make it ideal for power switching applications like DC-DC converters, off-line UPS, and primary-side switching. The compact miniBLOC package with aluminum nitride isolation ensures space saving and reliable mounting. Excellent for high-speed power electronics, it features low Rds(on), fast switching times, and robust avalanche capabilities, suited for demanding industrial environments.
Littelfuse IXTN600N04T2 Power MOSFET Specifications:
- Maximum Drain-Source Voltage: 40 V
- Continuous Drain Current: 200 A at 25°C
- Pulse Drain Current: 1800 A
- Avalanche Energy: 3 J
- Operating Temperature Range: -55°C to +175°C
- Junction Temperature (Tj): Up to 175°C
- Thermal Resistance RθJA: 0.16 °C/W
- Gate Threshold Voltage: 2-4 V
- Gate Charge (Qg): 163 ns
- Input Capacitance (Cges): 6400 pF
- Output Capacitance (Coss): 1470 pF
- Isolation Voltage: 2500 V~

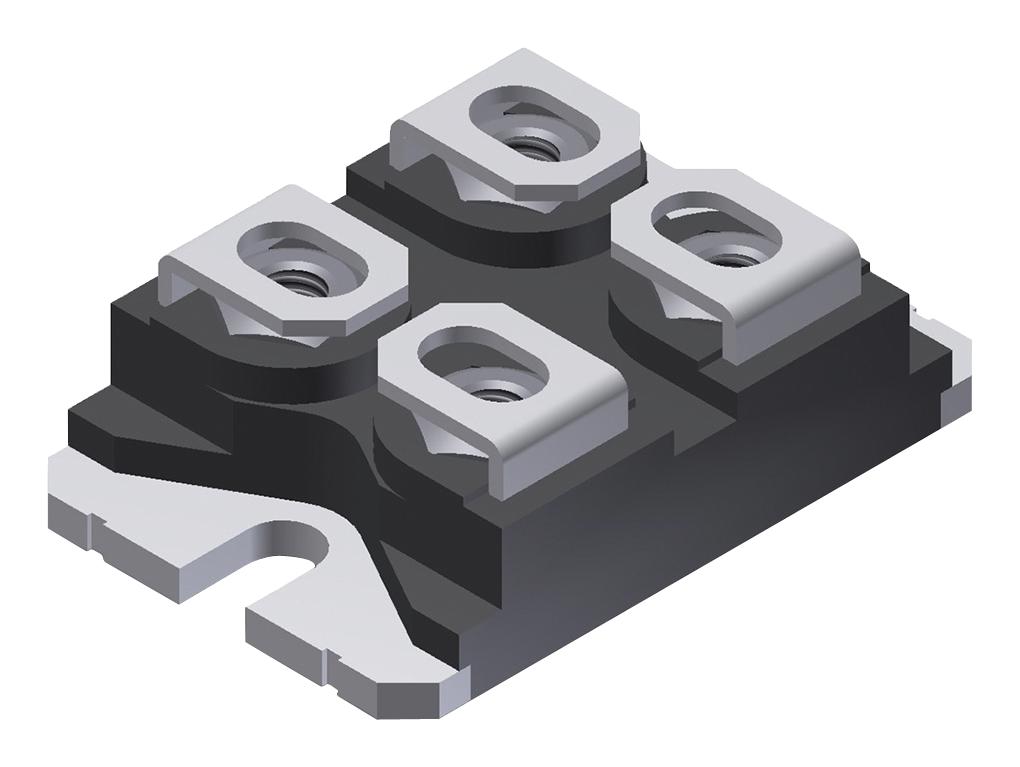

- Package: miniBLOC with Aluminum Nitride isolation
- Mounting Torque: 1.5 Nm
- Weight: 30 g
- Switching Times: Turn-on in 40 ns, Turn-off in 90 ns
- Gate Resistance: 1.32 Ω
Buy the XY S IXTN600N04T2 – Reliable Power MOSFET for Industrial Applications
Secure the XY S IXTN600N04T2 Power MOSFET online today for your industrial power switching needs. Featuring high current capacity, fast switching, low Rds(on), and superior thermal performance, this device ensures robust and efficient operation. The compact miniBLOC package with aluminum nitride isolation facilitates space-saving installation, ideal for high-density applications like DC-DC converters and UPS systems. Benefit from excellent avalanche ratings, high operating temperature, and reliable isolation voltage, making it a perfect choice for demanding environments requiring high power, safety, and durability.
Order your XY S Series IXTN600N04T2 today and give your power electronic projects the dependable quality they deserve, ensuring high performance and reliability.
