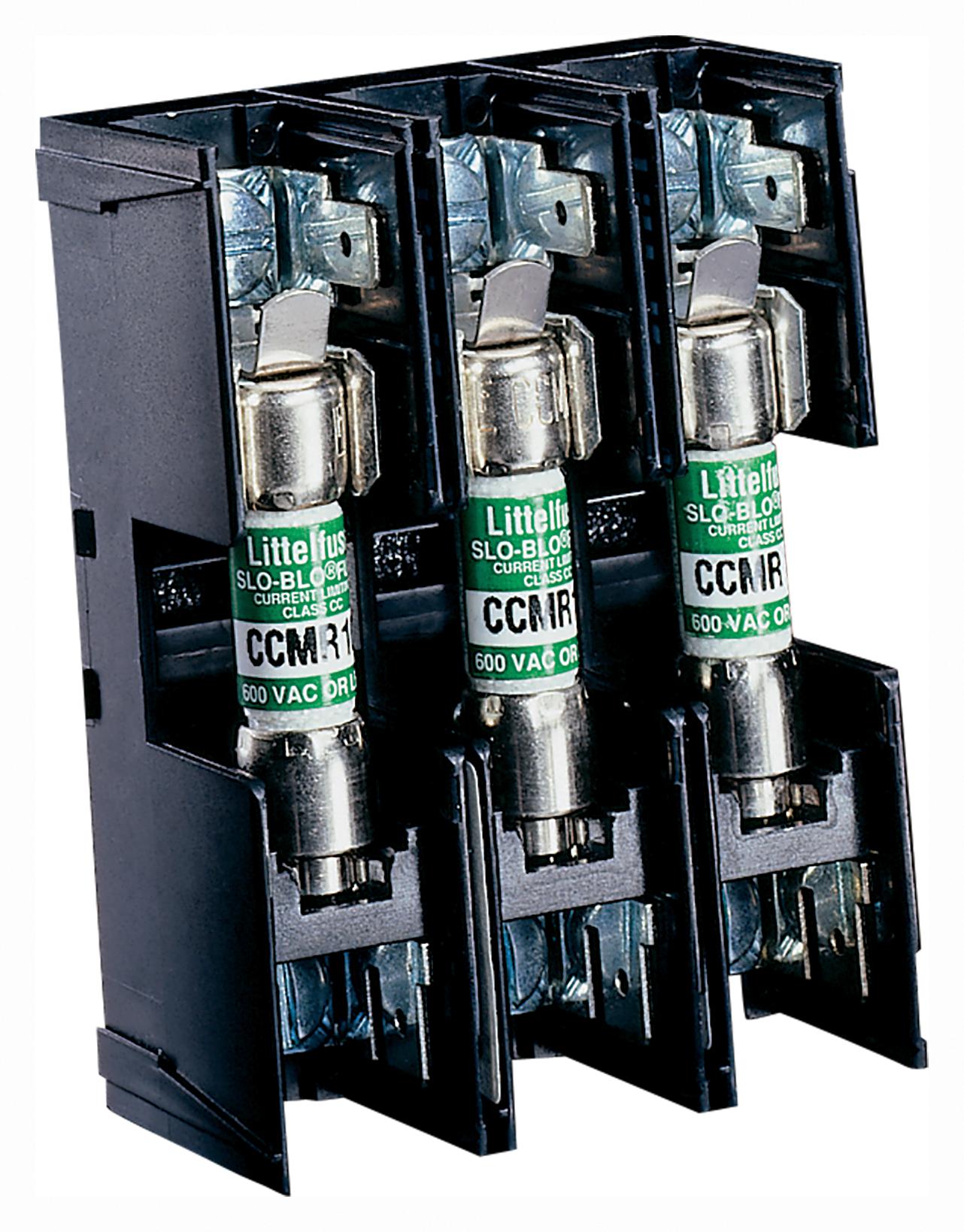

Littelfuse L60030C2SQ Fuse Block
This is a 30-amp, 600-volt molded case fuse block designed for industrial electrical safety and reliable fusing. It features high-strength, heat-resistant materials, low-resistance copper alloy clips for minimal heat generation, and a rejection feature to prevent improper fuse insertion. The fuse block is flexible, offering multiple terminal options including box lug, screw, or pressure plate, and is DIN rail mountable with snap-in adapters. Suitable for use in industrial control panels, motor circuits, and power distribution systems, it ensures durability, easy installation, and compliance with UL and CSA standards.
Littelfuse L60030C2SQ Fuse Block Specifications:
- Voltage Rating: 600 Volts AC/600 Volts DC
- Current Rating: 30 amps
- Material: Thermoplastic base, high-temperature molded body
- Fuse Clip Material: Tin-plated copper alloy
- Terminal Options: Box lug, screw, or pressure plate terminals
- Mounting: DIN rail snap-in adapters available
- Dimensions: 1.533 inches (39 mm) width, 2.283 inches (58 mm) depth, 1.25 inches (32 mm) height
- Interrupting Rating: 200,000 amperes (Class CC)
- Dielectric Strength: Minimum 1200 volts
- Approvals: UL Listed (File No. E14721), CSA Certified
- Temperature Rating: High-temperature resistant thermoplastic
- Fuses Rated for: 30A, with optional 60A version
- Rejection Feature: Prevents improper fuse insertion
- Compatible with Quick Connect Terminals rated at 20A
- Accessories: Snap-on DIN rail adapters for 36mm or 32mm rails
Buy the Littelfuse L60030C – Reliable Fuse Block for Industrial Applications
Secure your electrical systems with the Littelfuse L60030C fuse block, rated at 30 amps and 600 volts, featuring high-strength materials, multiple terminal options, and DIN rail compatibility. This durable fuse block offers reliable performance in industrial environments, ensuring safety and efficiency. Its rejection feature prevents incorrect fuse installation, and the low-resistance copper alloy clips minimize heat buildup. Perfect for motor circuits, power distribution, and control panels, it simplifies installation and maintenance, making it an essential part of your electrical infrastructure.
Order your Littelfuse Series L60030C fuse block today and ensure robust, safe, and reliable electrical distribution in your industrial projects.
Frequently Asked Questions
Where can I buy Littelfuse L60030C2SQ?
You can click on the BUY or RFQ button to purchase L60030C2SQ from an authorized Littelfuse distributor.
How do I troubleshoot issues or seek technical support for part L60030C2SQ?
You can download the L60030C2SQ datasheet or visit the Littelfuse website for support.
Who is the manufacturer of L60030C2SQ?
Littelfuse
