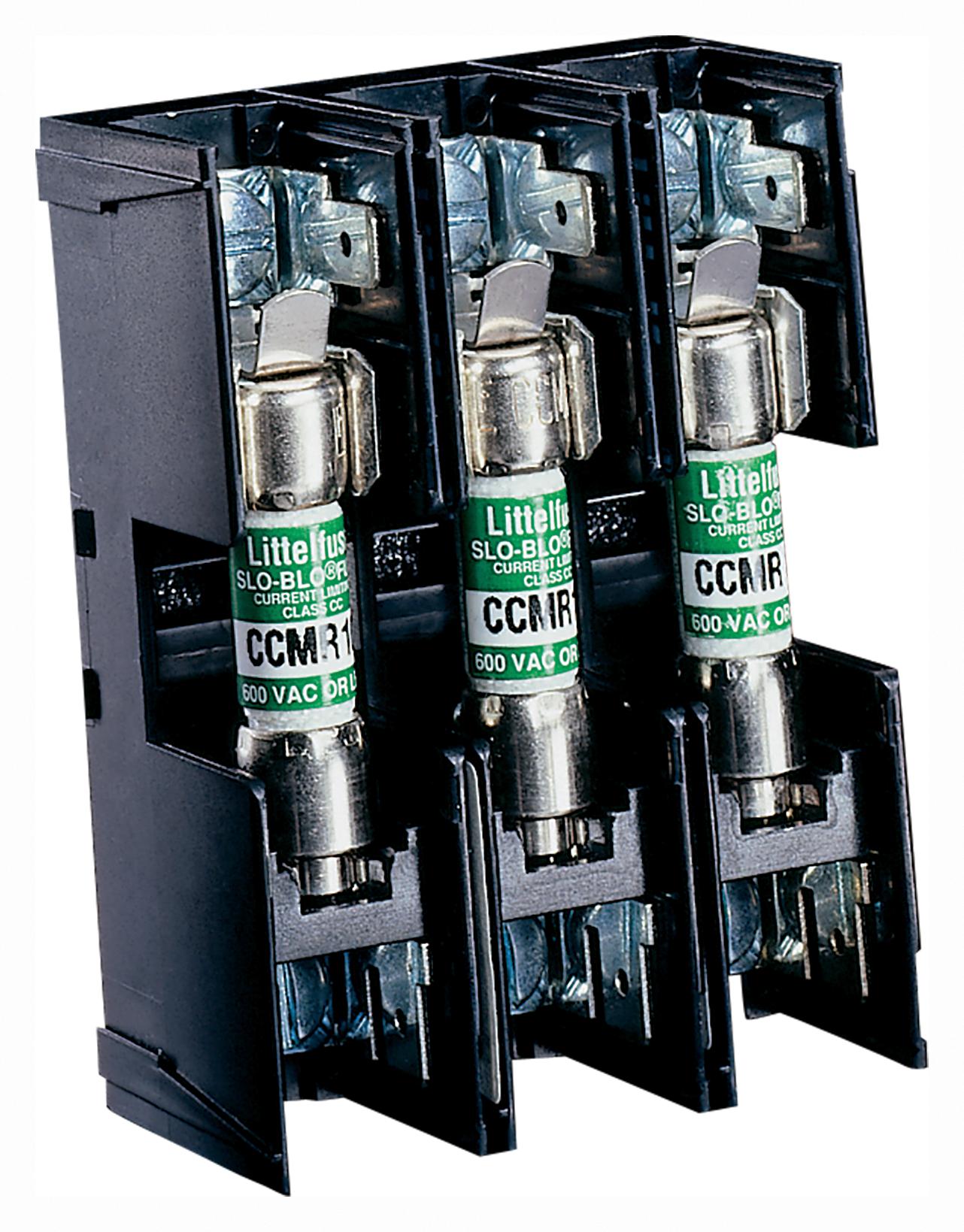

Littelfuse L60030M1SQDINR Fuse Block
The product is a fuse block designed for secure fuse mounting and ease of replacement, suitable for 600V applications with various amperage ratings up to 60A. It features a space-saving design, universal mounting options, and indication capabilities, making it ideal for electrical safety and maintenance. Constructed with tin-plated copper alloy terminals and thermoplastic base with UL94 V-0 flammability rating, it ensures durability, safety, and compliance with UL and CSA standards. The fuse block is suitable for both DIN rail and non-DIN rail mounting, offering reliable performance in industrial electrical systems.
Littelfuse L60030M1SQDINR Fuse Block Specifications:
- Voltage Rating: 600 V ac/de
- Ampere Ratings: L600M Midget 30 A, L600C Class CC 30 A, LFC Class CD 60 A, L600CM Class CC & Midget 30 A
- Minimum Voltage Rating: 1200 V
- Terminals: Tin-plated copper alloy, box lug copper, screw & captive pressure plate zinc-plated steel
- Base Material: Thermoplastic, UL94 V-0 flammability rating
- Withstand Rating (SCCR): L60030M: 10 kA, 20 kA or 100 kA, LFC600: 200kA, L60030C: 200kA
- Approvals: UL Recognized, UL Listed, CSA Certified
- Environmental: RoHS compliant, Lead (Pb) free
- Wire Range: 6-14 AWG
- Torque Specifications: 2.8 N-m (25 in-lbs) or 5.6 N-m (50 in-lbs)
- Dimensions: Length approximately 206.3 mm (8.12 inches), width 55.9 mm (2.20 inches), height 38 mm (1.50 inches)
Buy the Littelfuse Series LF Fuse Block: L60030M1SQDINR
Purchase the Littelfuse fuse block online today for reliable overload protection and electrical safety in industrial and commercial applications. This space-saving, easy-to-mount fuse holder features a robust design with UL and CSA certifications, suitable for 600V systems. With a wide range of amperage ratings up to 60A, it ensures secure connections, quick fuse replacement, and enhanced safety. Whether you need DIN rail or non-DIN rail mounting, buy online now and upgrade your electrical distribution setup with trusted quality and compliance standards.
Get Littelfuse L60030M1SQDINR fuse block today—built for safety, durability, and easy installation in electrical systems.
