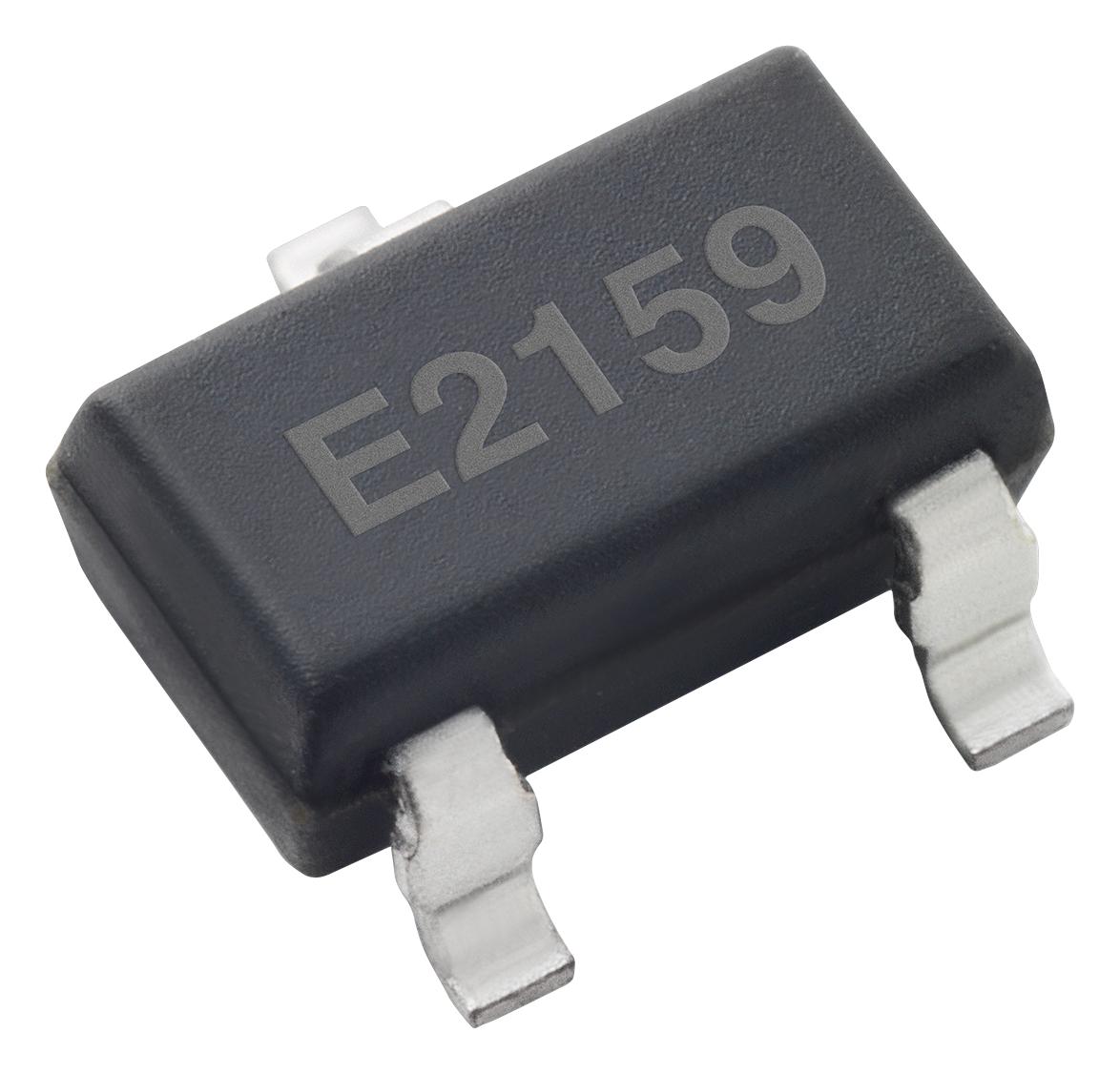

Littelfuse LF11115TMR Magnetic Sensor Switch
The LF11115TMR is a high sensitivity, low power magnetic sensor switch utilizing TMR and CMOS technology for precise and noise-immune position detection. It features a bipolar magnetic switch with high speed operation, consuming only 200nA, making it ideal for battery-powered applications. The device includes an on-chip TMR voltage generator, amplifier, comparator, and Schmitt trigger circuit for hysteresis. Suitable for proximity, rotary, and speed sensing applications, it operates over a wide voltage range of 1.8V to 5.5V with excellent thermal stability and magnetic interference immunity, all housed in a compact SOT23-3 package.
Littelfuse LF11115TMR Magnetic Sensor Switch Specifications:
- Supply Voltage: 1.8V to 5.5V
- Supply Voltage (Max): 7.0V
- Output Voltage High: Vee -0.3V
- Output Voltage Low: 0.2V
- Supply Current: 200nA
- Magnetic Flux Density: 4000 Gauss
- Hysteresis: 34 Gauss
- Operation Point: 9-25 Gauss
- Release Point: -25 to 9 Gauss
- Frequency Response: Up to 50Hz
- Operating Temperature: -40°C to +125°C
- Storage Temperature: -50°C to +150°C
- Switching speed: Fast response for position sensing applications
- Package: SOT23-3
- Material: Magnetic TMR technology with CMOS circuitry
- RoHS compliant, external bypass capacitor recommended (0.1pF)
Buy the Littelfuse LF11115TMR – Reliable Magnetic Switch for Industrial Applications
Purchase the Littelfuse LF11115TMR magnetic sensor switch today for precise, low power magnetic field detection suitable for industrial and automation applications. Its high sensitivity and noise immunity ensure accurate sensing even in challenging environments. Perfect for proximity, rotary, and speed sensing, with a compact SOT23-3 package. Enjoy fast response times, excellent thermal stability, and a wide operating voltage range from 1.8V to 5.5V. Buy online now to accelerate your project timeline with confidence in proven, high-performance sensor solutions.
Buy Littelfuse LF11115TMR now and experience unmatched reliability, low power operation, and high sensitivity for industrial proximity and position sensing tasks.
Frequently Asked Questions
Where can I buy Littelfuse LF11115TMR?
You can click on the BUY or RFQ button to purchase LF11115TMR from an authorized Littelfuse distributor.
How do I troubleshoot issues or seek technical support for part LF11115TMR?
You can download the LF11115TMR datasheet or visit the Littelfuse website for support.
Who is the manufacturer of LF11115TMR?
Littelfuse
