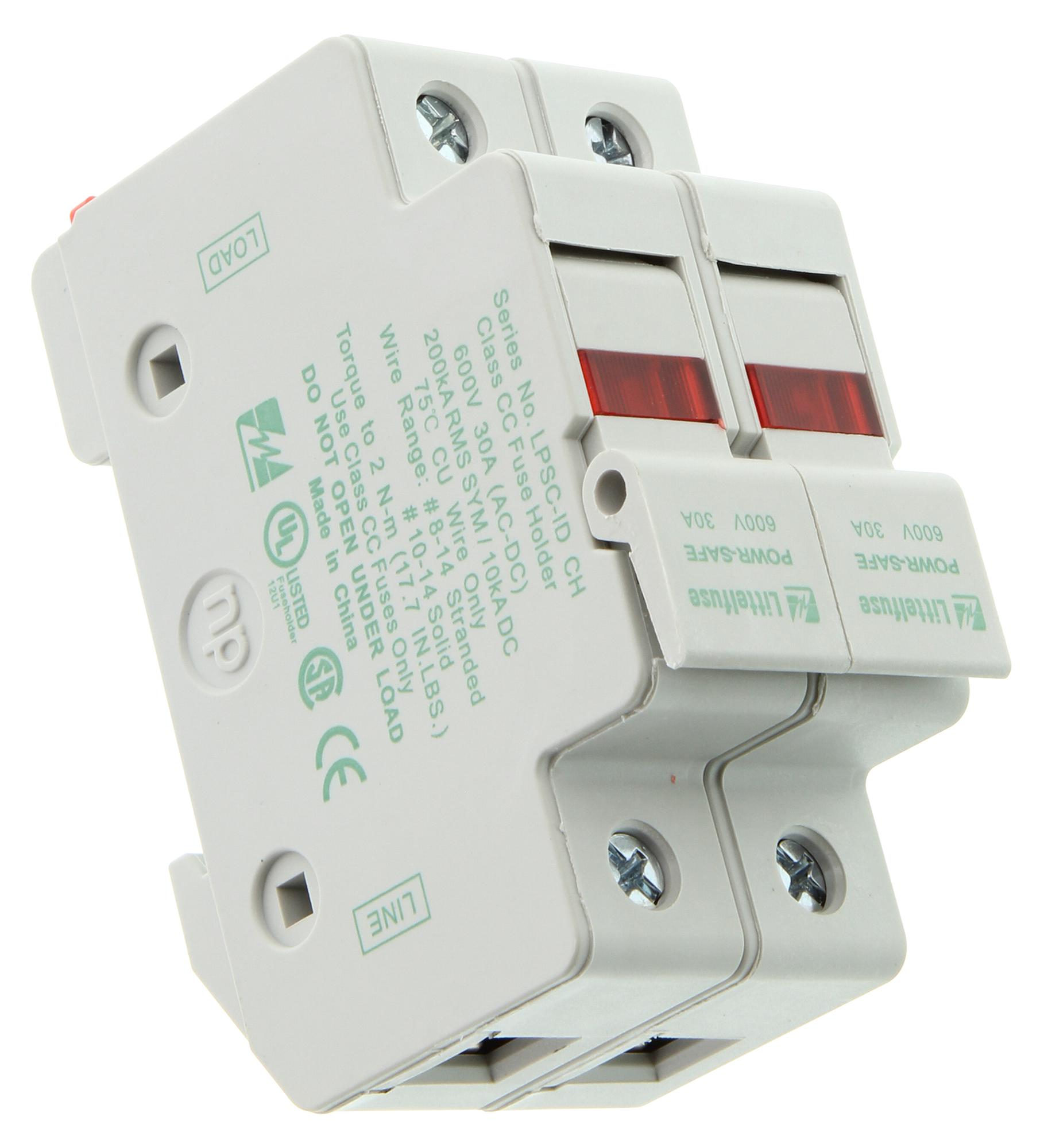

Littelfuse LPSC0002ZXID Fuse Holder
Littelfuse POWR-SAFE Dead Front fuse holders provide reliable protection for personnel and equipment, supporting Class CC and Midget-Style fuses. These holders are available in 1-, 2-, 3-, and 4-pole configurations, with easy installation, fuse removal, and no additional tools required. Mounted on 35mm DIN rails, they feature ventilated design for cooler operation and are suitable for a variety of industrial electrical applications. Compliant with UL, CSA, and RoHS standards, these fuse holders ensure safety and durability in demanding environments.
Littelfuse LPSC0002ZXID Fuse Holder Specifications:
- Voltage Rating: 600 V
- Ampere Rating: 30 A
- Interrupting Rating: 200 kA (Class CC), 100 kA (Midget)
- Terminal Type: Pressure plate
- Suggested Torque: 17.7 in-lbs
- Wire Range: #8-#14 CU
- Material: Thermoplastic
- Flammability Rating: UL94 V-0
- Approvals: UL Listed, UL Recognized, CSA Certified
- Environmental Compliance: RoHS compliant, Lead (Pb) free
Buy the Littelfuse LPSC0002ZXID – Reliable Fuse Holders for Industrial Applications
Purchase the Littelfuse LPSC0002ZXID fuse holder online today for safe, dependable protection of your electrical circuits. Designed to support Class CC and Midget fuse types, these holders are DIN rail mountable, easy to install, and feature ventilated designs for optimal performance. They meet UL, CSA, and RoHS standards, ensuring safety and environmental compliance. Ideal for industrial electrical applications, this fuse holder supports high interrupting ratings, pressure plate terminals, and wires from #8 to #14 AWG, providing a reliable component for your electrical system needs.
Order your Littelfuse SeriesLPSC0002ZXID fuse holder today and ensure safe, reliable protection in your electrical systems with easy installation features.
