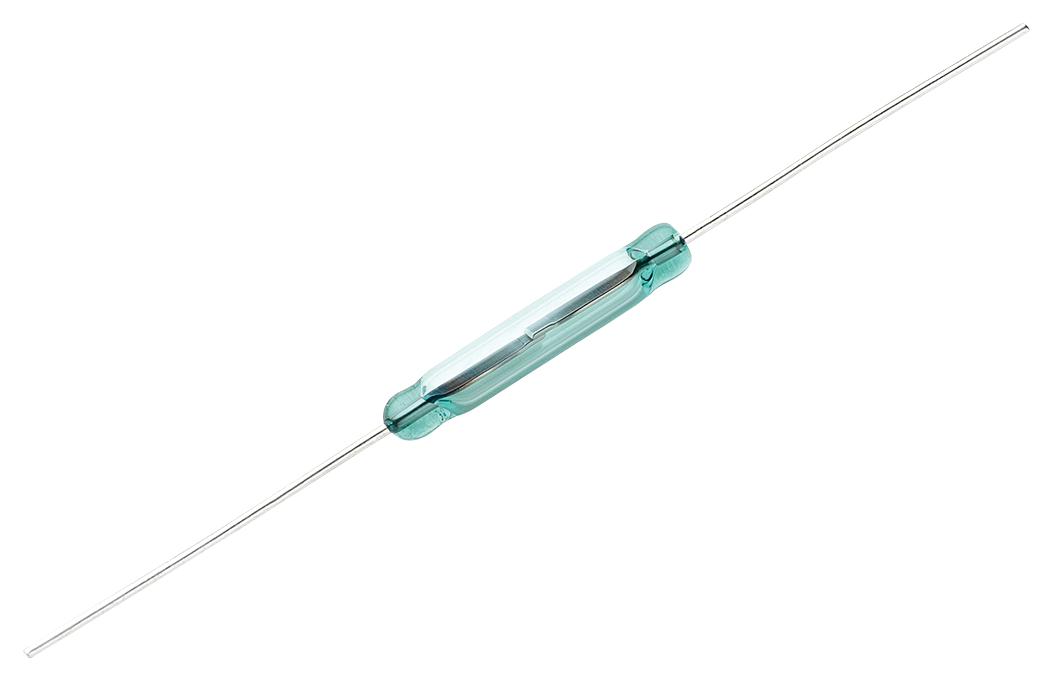

Littelfuse MACD142025 Miniature hermetic switch
The MACD-14 is a compact, hermetically sealed normally open switch designed for position, proximity, and liquid level sensing applications. With a 14mm x 2.28mm glass envelope, it can switch up to 200 Vdc at 10 Watts, supporting a maximum current of 0.5 Amps. It features low hysteresis, high insulation resistance of 10 MΩ, and is RoHS compliant. Suitable for industrial controls, office, and home appliances, it’s durable, low power, and unaffected by environmental conditions, ensuring reliable operation in demanding environments.
Littelfuse MACD142025 Miniature hermetic switch Specifications:
- Dimensions: 14mm x 2.28mm glass envelope
- Switching Voltage: Up to 200 Vdc
- Switching Power: 10 Watts
- Switching Current: Up to 0.5 Amps
- Insulation Resistance: 10 MΩ
- Contact Resistance: Low, stable contact resistance
- Capacitance: Approx. 3 pF
- Operating Temperature: -40°C to +125°C
- Storage Temperature: -65°C to +125°C
- Operate Time: Max 0.6 ms
- Release Time: Max 0.2 ms
- Shock Resistance: Max. 100 G sine wave
- Vibration: Max. 30 G over 50-2000 Hz
- Ingress Protection: Hermetically sealed, unaffected by environment
- RoHS Compliant
Buy the Hamlin Series MACD-14 Switch: MACD142025
Discover the reliable Hamlin Series MACD-14 miniature hermetic switch, perfect for position, proximity, and liquid level sensing applications. It supports switching up to 200 Vdc at 10 Watts, with a maximum current of 0.5 Amps. This durable, hermetically sealed switch features low hysteresis, high insulation resistance of 10 MΩ, and RoHS compliance. Suitable for industrial controls, home appliances, and office equipment, it offers exceptional resistance to environmental factors, ensuring long-lasting, dependable operation in demanding conditions. Purchase online today for quality and performance.
Order your Hamlin Series MACD-14 switch today and ensure reliable sensing and control in your industrial or home projects.
Frequently Asked Questions
Where can I buy Littelfuse MACD142025?
You can click on the BUY or RFQ button to purchase MACD142025 from an authorized Littelfuse distributor.
How do I troubleshoot issues or seek technical support for part MACD142025?
You can download the MACD142025 datasheet or visit the Littelfuse website for support.
Who is the manufacturer of MACD142025?
Littelfuse
