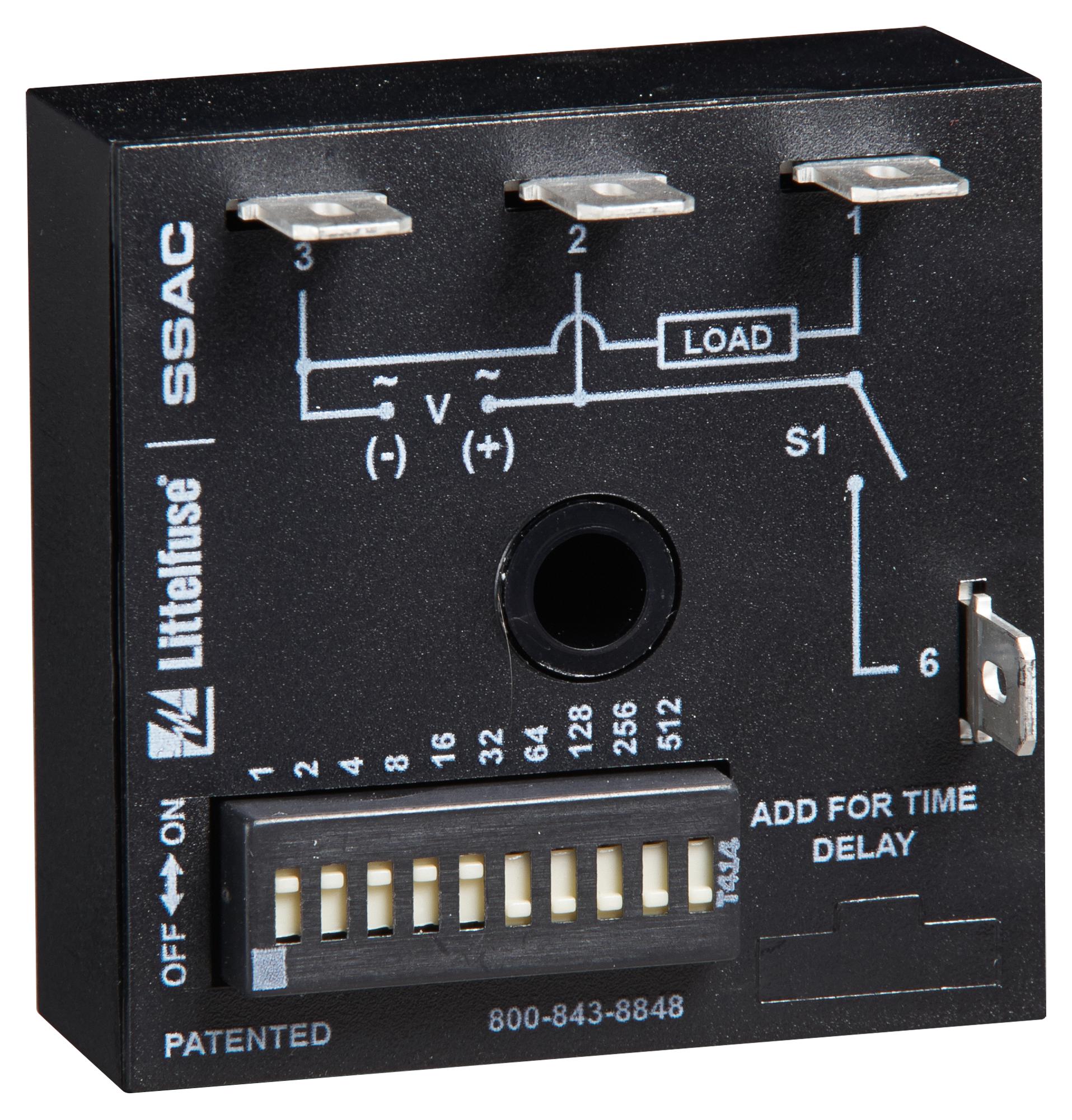

Littelfuse TDUS3002A Single Shot Timer
The TDUS Series Single Shot Timer combines digital circuitry with universal voltage compatibility, operating on voltages from 12 to 240V. It offers DIP switch-selectable time delays from 0.1 seconds to 1023 seconds, making it ideal for process control and OEM applications. Features include microcontroller-based accuracy within ±0.1%, solid-state output rated at 1A steady, 10A inrush, and encapsulation for durability against shock and vibration. Mountable on surface with a compact design, it ensures reliable operation in diverse industrial environments.
Littelfuse TDUS3002A Single Shot Timer Specifications:
- Time Delay Range: 0.1 - 1023s in 0.1s, 1 - 1023s in 1s, 0.41 -102.3m in 0.1m increments
- Repeat Accuracy: ±0.1% or 20ms
- Reset Time: <150ms
- Voltage Range: 12 to 240VAC, 12 to 24VDC ±20%
- Power Consumption: AC <2VA; DC <1W
- Output Type: Solid state, NO contact, rated at 1A steady, 10A inrush
- Voltage Drop: AC 2.5V @1A; DC V @1A
- Dimensions: H50.8mm x W50.8mm x D30.7mm
- Mounting: Surface mount with #10 screw
- Operating Temperature: -40°C to 60°C; Storage: -40°C to 85°C
- Environmental: 95% humidity non-condensing
- Termination: 0.25 in. male quick connect terminals
- Protection: Encapsulated, dielectric breakdown 2000VRMS
- Insulation Resistance: >100 Mo
Buy the Littelfuse Series TDUS Timer: TDUS3002A
Purchase the Littelfuse Series TDUS3002A single shot timer online today to enhance your process control systems. This versatile timer features universal voltage operation, DIP switch-selectable timings from 0.1 seconds to over 1023 seconds, and a solid-state output rated at 1A. Its compact design allows easy mounting, with encapsulation providing protection against shock and vibration. Perfect for OEM applications, this timer ensures accurate, reliable delays essential for industrial automation and control tasks. Order now for fast delivery and seamless integration into your systems.
Order your Littelfuse Series TDUS3002A digital timer today and ensure precise timing control for your industrial and OEM projects with reliable solid-state performance.
