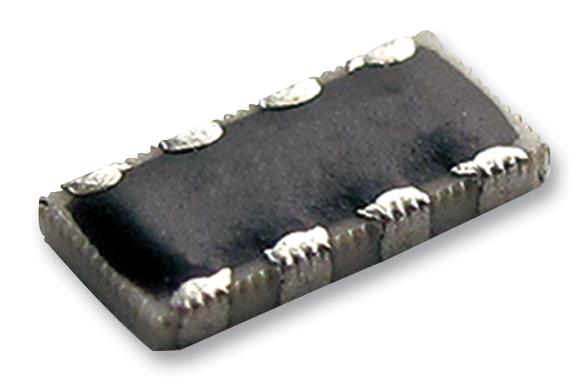

Littelfuse PESD1206Q240 ESD protection device
The PESD1206Q240 is a compact, bi-directional electrostatic discharge protection device designed for high-frequency applications such as HDMI, USB, and DVI interfaces. It features low capacitance of 0.25 pF, fast response time, low leakage current, and high ESD voltage capability up to 15kV air discharge. Its RoHS, halogen-free compliance makes it environmentally friendly. Suitable for protecting sensitive circuits in LCDs, plasma TVs, portable devices, and antenna systems, it withstands multiple ESD strikes while maintaining signal integrity.
Littelfuse PESD1206Q240 ESD protection device Specifications:
- Operating Voltage: 24 V
- Trigger Voltage: 215 V
- Clamping Voltage: 45 V @ 1 MHz, 1 V EMI
- Capacitance: 0.25 pF
- Leakage Current: <0.01 μA at maximum voltage
- Material: Thick film technology
- Size: 3.10 x 0.50 x 0.10 mm
- RoHS and Halogen Free compliant
- Solderability: 250°C for 3 seconds
- Vibration: Passes IEC 61000-4-2 Level 4, up to 15kV air discharge
- Storage Temperature: -40°C to +85°C
- Operating Temperature: -55°C to +125°C
- Durability: Capable of withstanding 100 ESD pulses
Buy the Littelfuse PESD1206Q240 – Reliable ESD Protection for Industrial Applications
Enhance your electronic device reliability with the Littelfuse PESD1206Q240 ESD protection device. This compact, bi-directional component offers excellent high-frequency ESD protection, fast response time, and low capacitance, making it ideal for HDMI, USB, DVI, and other high-speed interfaces. It complies with RoHS and halogen-free standards, ensuring environmental safety. Perfect for LCDs, plasma TVs, portable electronics, and antenna systems, this device withstands multiple ESD strikes while maintaining signal integrity and preventing circuit damage. Order online today for dependable, space-efficient ESD protection.
Order your Littelfuse Series PESD1206Q240 ESD protection device today and safeguard your sensitive circuits with high-performance, space-saving protection.
Frequently Asked Questions
Where can I buy Littelfuse PESD1206Q240?
You can click on the BUY or RFQ button to purchase PESD1206Q240 from an authorized Littelfuse distributor.
How do I troubleshoot issues or seek technical support for part PESD1206Q240?
You can download the PESD1206Q240 datasheet or visit the Littelfuse website for support.
Who is the manufacturer of PESD1206Q240?
Littelfuse
