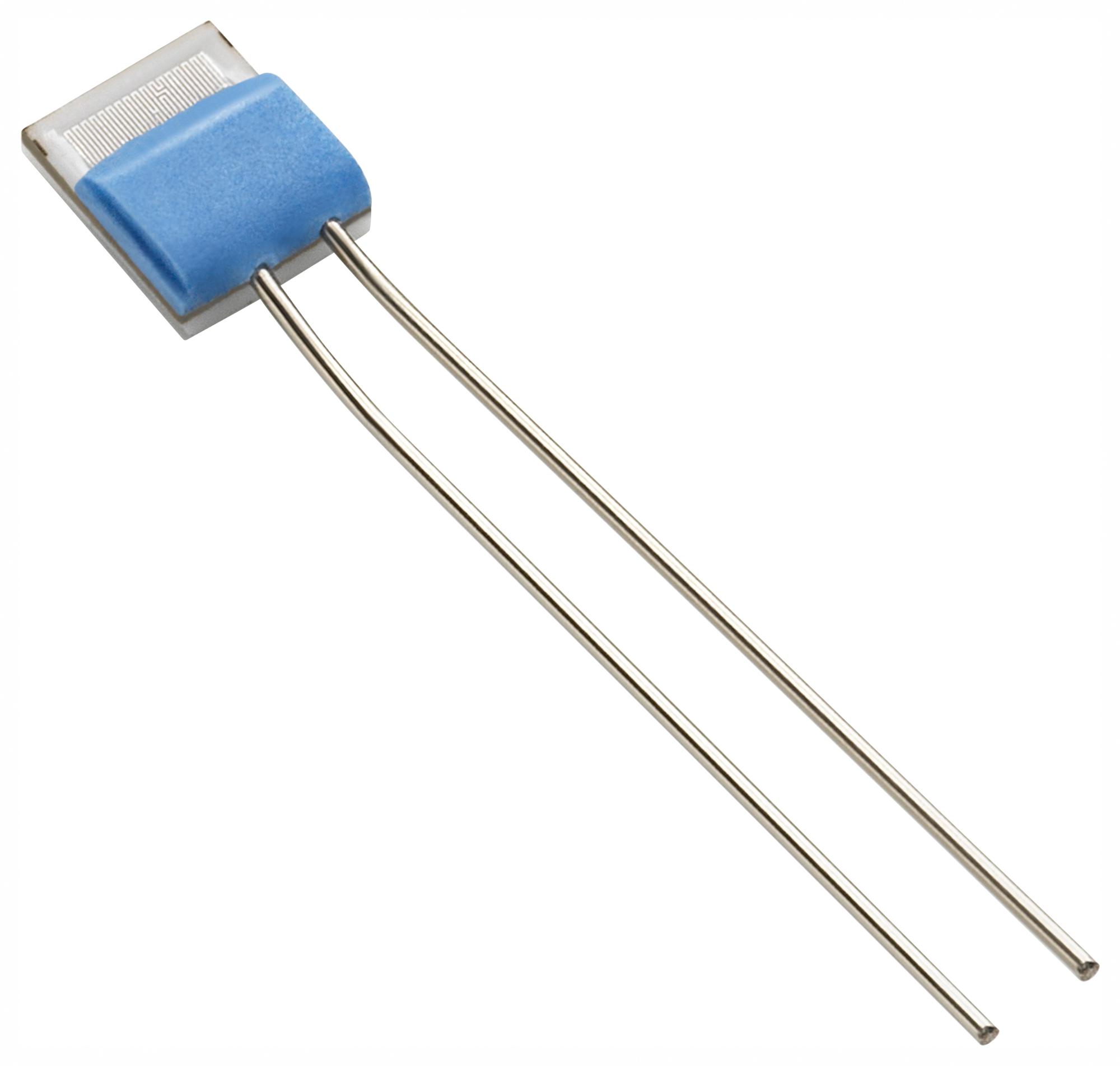

Littelfuse PPG102JB Platinum RTD Sensor
The PPG102JB is a high-precision thin film platinum RTD sensor designed for industrial temperature measurement applications. Featuring a ceramic substrate and a glass-coated platinum element, this RTD offers excellent stability, high accuracy within +0.12% resistance deviation and +0.30°C temperature deviation, and capability to withstand temperatures from -70°C to +500°C. Its resistance at 0°C is 1,000 ohms, with a resistance tolerance of Class B. Ideal for processes requiring precise and reliable temperature sensing in demanding environments.
Littelfuse PPG102JB Platinum RTD Sensor Specifications:
- Resistance: 1000 ohms at 0°C
- Resistance Tolerance: Class B (±0.12%)
- Temperature Range: -70°C to +500°C
- Temperature Deviation: ±0.30°C
- Resistance Deviation: ±0.12
- Response Time: 10 seconds
- Material: Glass coated platinum element on ceramic substrate
- Lead Wire: 32 AWG Resistance, platinum-clad nickel
- TCR: 3,850 ppm/°C
- Standards: DIN EN 60751 (2009)
Buy the Buy Littelfuse PPG102JB Part Number 102JB Online
Discover the Littelfuse PPG102JB platinum RTD sensor, engineered for high accuracy and stability in industrial temperature monitoring. Featuring a ceramic substrate and glass-coated platinum element, it offers excellent reliability from -70°C to +500°C. With a resistance of 1000 ohms at 0°C and Class B tolerance, this sensor ensures precise temperature readings essential for process control, HVAC, and manufacturing applications. Fast response time and durable construction make it ideal for demanding environments. Buy online now to enhance your temperature measurement solutions.
Order your Littelfuse Series102JB high-precision RTD sensor today and ensure accurate temperature measurement in challenging industrial environments.
Frequently Asked Questions
Where can I buy Littelfuse PPG102JB?
You can click on the BUY or RFQ button to purchase PPG102JB from an authorized Littelfuse distributor.
How do I troubleshoot issues or seek technical support for part PPG102JB?
You can download the PPG102JB datasheet or visit the Littelfuse website for support.
Who is the manufacturer of PPG102JB?
Littelfuse
