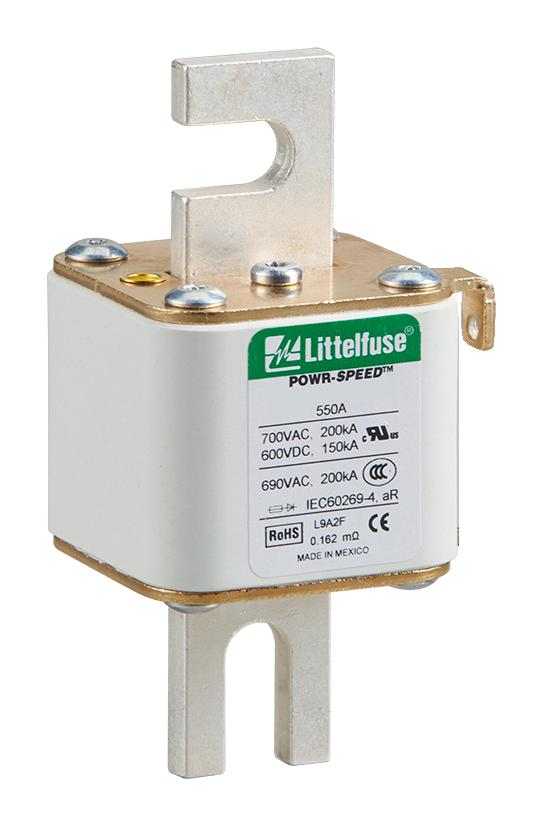

Littelfuse PSR030DS0500Z Semiconductor Fuse
Littelfuse PSR series high-speed square body fuses protect power semiconductor devices like diodes, triacs, IGBTs, SCRs, and MOSFETs used in power conversion, drives, UPS, and battery systems. Featuring fast response times and visual blown indication, these ceramic-body fuses offer excellent current limiting, high interrupting ratings up to 200kA AC, and certification from UL, IEC, and CCC. Designed for DIN 80mm or 110mm fixing, they ensure reliable protection in industrial and electrical applications with broad voltage ratings from 480V to 1300V.
Littelfuse PSR030DS0500Z Semiconductor Fuse Specifications:
- Voltage Rating Ac: 550 V-1300V
- Dc: 480 V-1000 V
- Amperage Rating: 40 A-2000 A
- Interrupting Rating: Ac: 100 KA-200 kA, Dc: 150kA
- Time Constant: 10 ms
- Microswitch: Yes
- Body Material: Ceramic
- Contacts: Plated copper
- Mounting: DIN 43653 blade style
- Operating Temperature: -55°C to +125°C
- Storage Temperature: Up to +35°C with humidity <65%
- Approvals: UL Recognized, C-UL, IEC 60269-4, RoHS, REACH
- Dimensions vary with case size, typically 80mm or 110mm fixing
Buy the Littelfuse Series PSR Semiconductor High-Speed Fuse: PSR030DS0500Z
Purchase the Littelfuse PSR series high-speed square body fuse online today to safeguard your power semiconductor devices efficiently. Designed for fast operation, these fuses provide superior current limiting and visual blown indication, making maintenance and troubleshooting straightforward. Suitable for power conversion, industrial drives, UPS, and battery systems, the fuses comply with international safety and certification standards. With easy online ordering, get reliable protection with broad voltage ratings up to 1300 volts, enhancing your equipment’s safety and operational stability with quick, dependable delivery.
Buy Littelfuse PSR030DS0500Z high-speed semiconductor fuse now and ensure reliable and fast protection for your power devices with certified quality.
Frequently Asked Questions
Where can I buy Littelfuse PSR030DS0500Z?
You can click on the BUY or RFQ button to purchase PSR030DS0500Z from an authorized Littelfuse distributor.
How do I troubleshoot issues or seek technical support for part PSR030DS0500Z?
You can download the PSR030DS0500Z datasheet or visit the Littelfuse website for support.
Who is the manufacturer of PSR030DS0500Z?
Littelfuse
