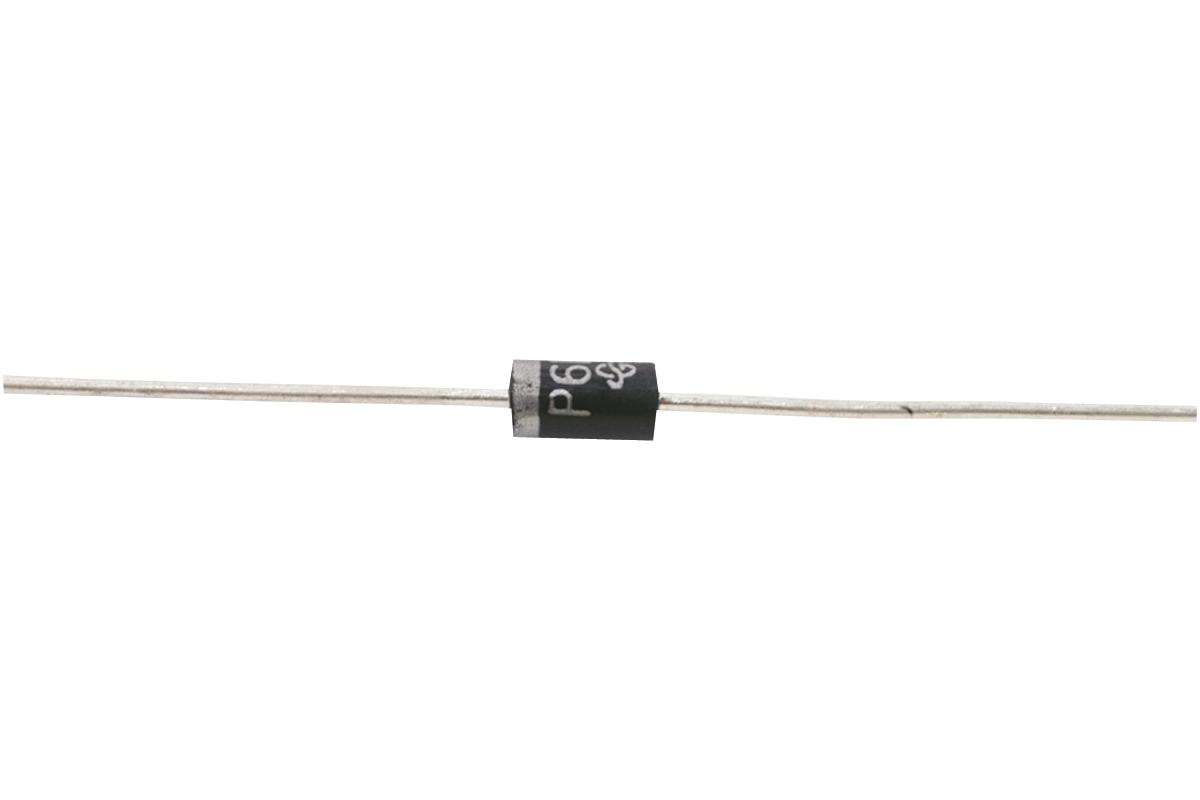

Littelfuse SA15CA Transient Voltage Suppressor
The SA Series transient voltage suppression diodes are designed to protect sensitive electronic equipment from voltage transients caused by lightning and other surges. These axial leaded devices offer a peak pulse power capability of 500W at a 10/1000us waveform, with fast response times less than 1.0ps. Suitable for data lines and V,, bus protection in telecom, industrial, and consumer electronics, they feature glass passivated chips in DO-204A packages, making them reliable and RoHS compliant. The series provides excellent clamping and low leakage current, ensuring long-lasting durability in harsh environments.
Littelfuse SA15CA Transient Voltage Suppressor Specifications:
- Peak Pulse Power Dissipation: 500W at 10/1000us waveform
- Maximum Steady State Power Dissipation: 30W at T=75°C
- Peak Forward Surge Current: 70A for 8.3ms single half sine wave
- Maximum Instantaneous Forward Voltage: 35V at 35A
- Maximum Reverse Breakdown Voltage: varies by model, typically around 10V or higher
- Reverse Leakage Current: less than 1pA when V_C is greater than 13V
- Operating Temperature Range: -65°C to 175°C
- Glass passivated junction in DO-204A package
- Lead Material: Matte tin plated, RoHS compliant
- Soldering Temperature: Peak 260°C for reflow, maximum 1 time
- Physical Dimensions: Length varies based on model, typical lead length approximately 4.0 mm
- Environmental Ratings: Flammability rated V-0, high temp storage, temperature cycling tested
- Stand-off Voltage: specified per model, usually below or around 10V for bi-directional types
- Certifications: UL Listed, RoHS and halogen-free, compliant with JEDEC standards
Buy the Littelfuse SA15CA – Reliable Transient Voltage Suppression Diodes for Industrial Applications
Choose the Littelfuse SA15CA transient voltage suppression diode for superior circuit protection against voltage transients caused by lightning and surges. This reliable component features a 500W peak pulse power capacity at a 10/1000us waveform, ensuring rapid response times less than 1.0ps. Its glass passivated chip and DO-204A package guarantee robustness and consistent performance. The device's excellent clamping capability reduces voltage spikes, offering long-term durability for telecom, industrial, and consumer electronics. Buy online now for dependable surge protection that ensures your circuits remain safe and reliable.
Get Littelfuse SA15CA today—built for precision and long-lasting durability in electronic protection systems.
Frequently Asked Questions
Where can I buy Littelfuse SA15CA?
You can click on the BUY or RFQ button to purchase SA15CA from an authorized Littelfuse distributor.
How do I troubleshoot issues or seek technical support for part SA15CA?
You can download the SA15CA datasheet or visit the Littelfuse website for support.
Who is the manufacturer of SA15CA?
Littelfuse
