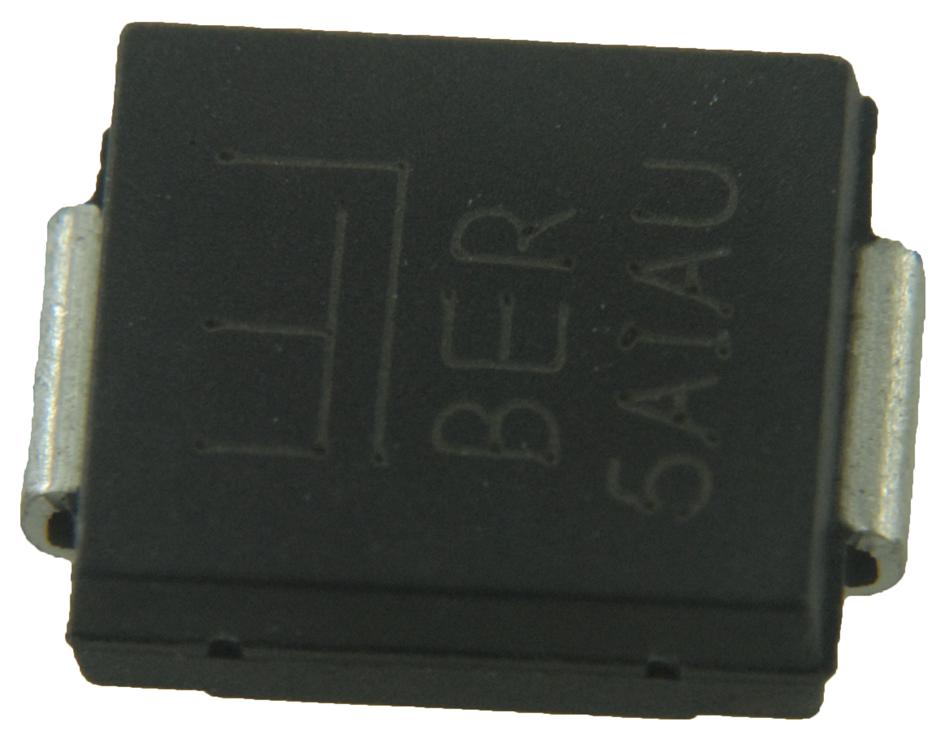

Littelfuse SMCJ17CA Transient Voltage Suppressor Diode
The SMCJ series surface-mount Transient Voltage Suppression diode protects sensitive electronic circuits from voltage spikes induced by lightning and transient events. Operating from -65°C to 150°C, it features a 1500W peak pulse power capacity at 10/1000μs waveform, with excellent clamping, low incremental surge resistance, and built-in strain relief. Available in unidirectional and bidirectional types, it provides effective ESD and EFT protection, with a low-profile, lead-free package designed for space-efficient mounting in industrial, telecom, and consumer electronics applications, ensuring high reliability and quick response to voltage transients.
Littelfuse SMCJ17CA Transient Voltage Suppressor Diode Specifications:
- Peak Pulse Power: 1500W at 10/1000μs waveform
- Operating Temperature Range: -65°C to 150°C
- Maximum Standoff Voltage: Vv varies by part
- Breakdown Voltage: Vd specified per part number
- Clamping Voltage: as per datasheet testing conditions
- Reverse Leakage Current: minimal at Vv>12V
- Mounting Style: Surface mount, DO-214AB package
- Material: Glass passivated junction, matte tin lead-free leads
- Environmental Compliance: RoHS, halogen-free, MSL level 1
- Surge Current Capability: 200A (unidirectional), 2000W (stacked-die)
- Response Time: typically less than 1 picosecond
- Soldering: reflow compatible up to 260°C for 40 seconds
- Physical Dimensions: 13 x 6.4 mm (approximate in inches and millimeters)
- Approvals: IEC 61000-4-2 ESD, IEC 61000-4-4 EFT
- Weight: approximately 0.21 grams
Buy the Littelfuse SMCJ17CA – Reliable Transient Voltage Suppression for Industrial Applications
Secure your electronic circuits with the high-performance SMCJ series Transient Voltage Suppressor Diodes from Littelfuse. Designed for space-saving surface-mount applications, these 1500W peak pulse power devices offer fast, reliable protection against lightning surges, ESD, and EFT transients. Their robust construction features a glass passivated junction, built-in strain relief, and RoHS compliance. Whether for industrial, telecom, or consumer electronics, ensure your circuits are protected with these high-quality, quick-response TVS diodes. Order online today for dependable surge suppression.
Buy Littelfuse SMCJ17CA now and experience unmatched reliability and performance in robust circuit protection solutions.
Frequently Asked Questions
Where can I buy Littelfuse SMCJ17CA?
You can click on the BUY or RFQ button to purchase SMCJ17CA from an authorized Littelfuse distributor.
How do I troubleshoot issues or seek technical support for part SMCJ17CA?
You can download the SMCJ17CA datasheet or visit the Littelfuse website for support.
Who is the manufacturer of SMCJ17CA?
Littelfuse
