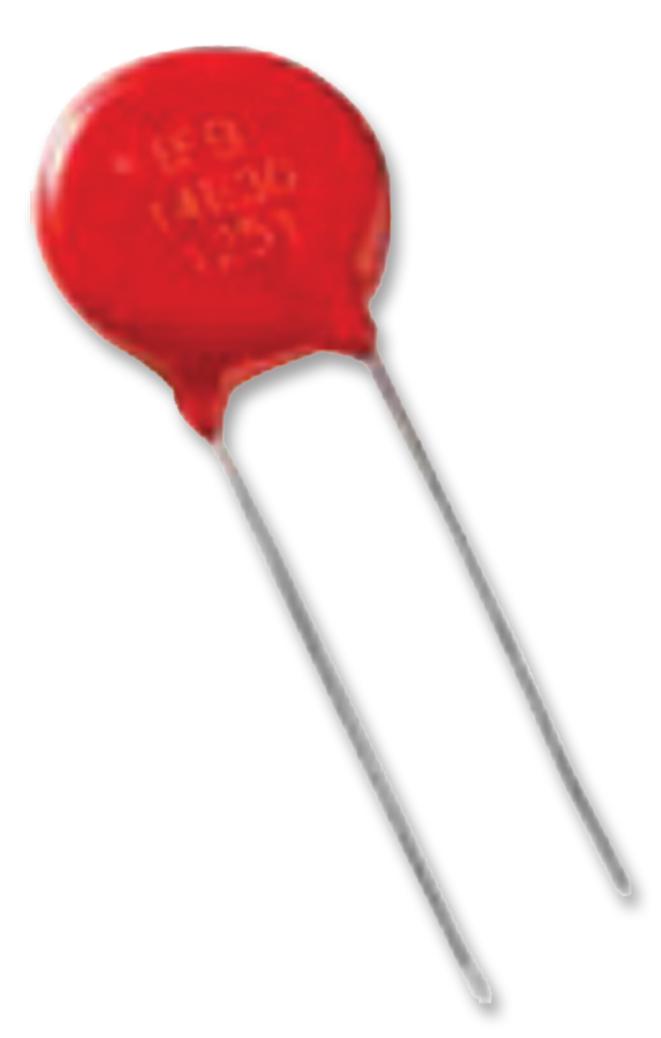

Littelfuse V20E14P Surge Protector
The LV UltraMOV® Varistor Series offers reliable circuit protection for DC applications with models ranging from 14V to 125V. These epoxy- and phenolic-coated MOVs can handle surge currents up to 10kA (8/20us pulse), safeguarding against lightning, system transients, and fast abnormal surges. Available in five sizes—5mm, 7mm, 10mm, 14mm, and 20mm—they feature wide voltage ranges, high temperature resilience up to 125°C for phenolic coatings, UL and TUV recognition, RoHS compliance, and low leakage current. Ideal for power systems, consumer electronics, and industrial control devices, they ensure long-lasting, efficient surge suppression with certified ignition resistance and insulation resistance exceeding 1,000 MΩ.
Littelfuse V20E14P Surge Protector Specifications:
- Coating: Epoxy or Phenolic
- Voltage Range: 14V to 125V DC
- Peak Surge Current: Up to 10kA (8/20us pulse)
- Maximum Power Dissipation: 0.8 to 150 Joules depending on model size
- Ambient Operating Temperature: -40°C to +125°C
- Insulation Resistance: >1,000 MΩ
- Isolation Voltage: 2500V (Epoxy), 800V (Phenolic)
- Lead Material: Tinned copper wire (standard), optional nickel barrier coated
- Models: 5mm, 7mm, 10mm, 14mm, 20mm sizes
- Certifications: UL Recognized, TUV certified, RoHS compliant
- Power Dissipation Power derating applies over 85°C ambient for epoxy and 125°C for phenolic coatings
Buy the Littelfuse Series UltraMOV DC Surge Protector: V20E14P
Secure long-lasting surge protection for your electronic and electrical systems with the Littelfuse UltraMOV V20E14P. This series of MOVs provides high surge current handling up to 10kA, ensuring robust defense against lightning strikes, transient surges, and fast transients. Available in five sizes, with wide voltage range from 14V to 125V, these UL Recognized and RoHS compliant devices feature high temperature resilience up to 125°C and insulation resistance over 1,000 MΩ. Purchase online today for dependable, certified surge suppression tailored for power, telecom, and industrial applications.
Get Littelfuse UltraMOV V20E14P today—designed for reliable surge protection in power systems and industrial controls.
Frequently Asked Questions
Where can I buy Littelfuse V20E14P?
You can click on the BUY or RFQ button to purchase V20E14P from an authorized Littelfuse distributor.
How do I troubleshoot issues or seek technical support for part V20E14P?
You can download the V20E14P datasheet or visit the Littelfuse website for support.
Who is the manufacturer of V20E14P?
Littelfuse
