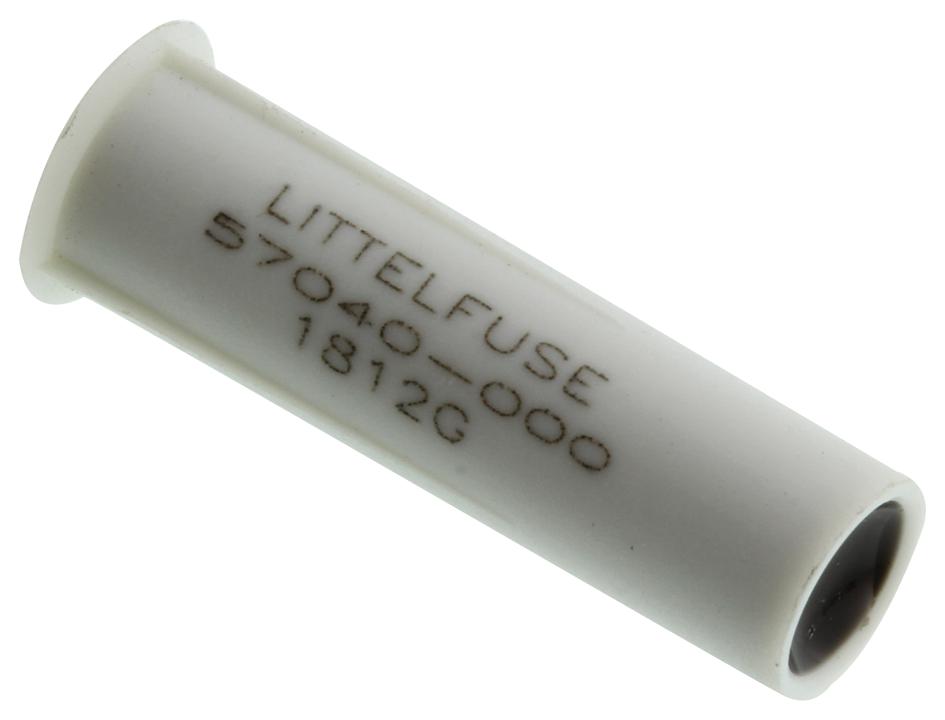

Littelfuse 57040000 Press-Fit Firecracker Reed Sensor
The LITTELFUSE 57040-000 Press-Fit Firecracker Reed Sensor is a compact, cylindrical reed sensor ideal for a wide range of industrial applications. It features hermetically sealed contacts, a magnetically-operated proximity sensor, and options for normally open, normally closed, or single-pole-double-throw configurations. Suitable for position and limit sensing, security systems, level sensing, and linear actuator applications, this sensor functions optimally with the 57040 actuator. Its non-contact operation and simple press-fit installation make it a versatile and efficient solution for various control and automation needs.
Littelfuse 57040000 Press-Fit Firecracker Reed Sensor Specifications:
- Contact Type: Normally Open, Normally Closed, Change-Over
- Switch Type: 1, 3, 4
- Contact Rating: 10 VA/Watt (max)
- Switching Voltage (Vdc): 200 (max)
- Switching Voltage (Vac): 140 (max)
- Breakdown Voltage (Vdc): 250 (min)
- Switching Current (Adc): 0.5 (max)
- Switching Current (Aac): 0.35 (max)
- Carry Current (Adc): 1.2 (max)
- Contact Resistance: 0.2 Ω (max)
- Insulation Resistance: 10 MΩ (min)
- Contact Capacitance: 0.3 pF (typ)
- Operating Temperature: -40 to +105 °C
- Operate Time: 1.0 ms (max)
- Release Time: 1.0 ms (max)
- Shock Resistance: 100 G (max)
- Vibration Resistance: 30 G (max)
- Activate Distance (mm): 12-18, 15-20, 25-30 (depending on option)
- Cable Type: 24 AWG PVC 105°C UL1430/UL1569
- Cable Length (mm): 300 (11.81)
- Termination Options: Tinned leads, Untinned leads, JST type XHP
