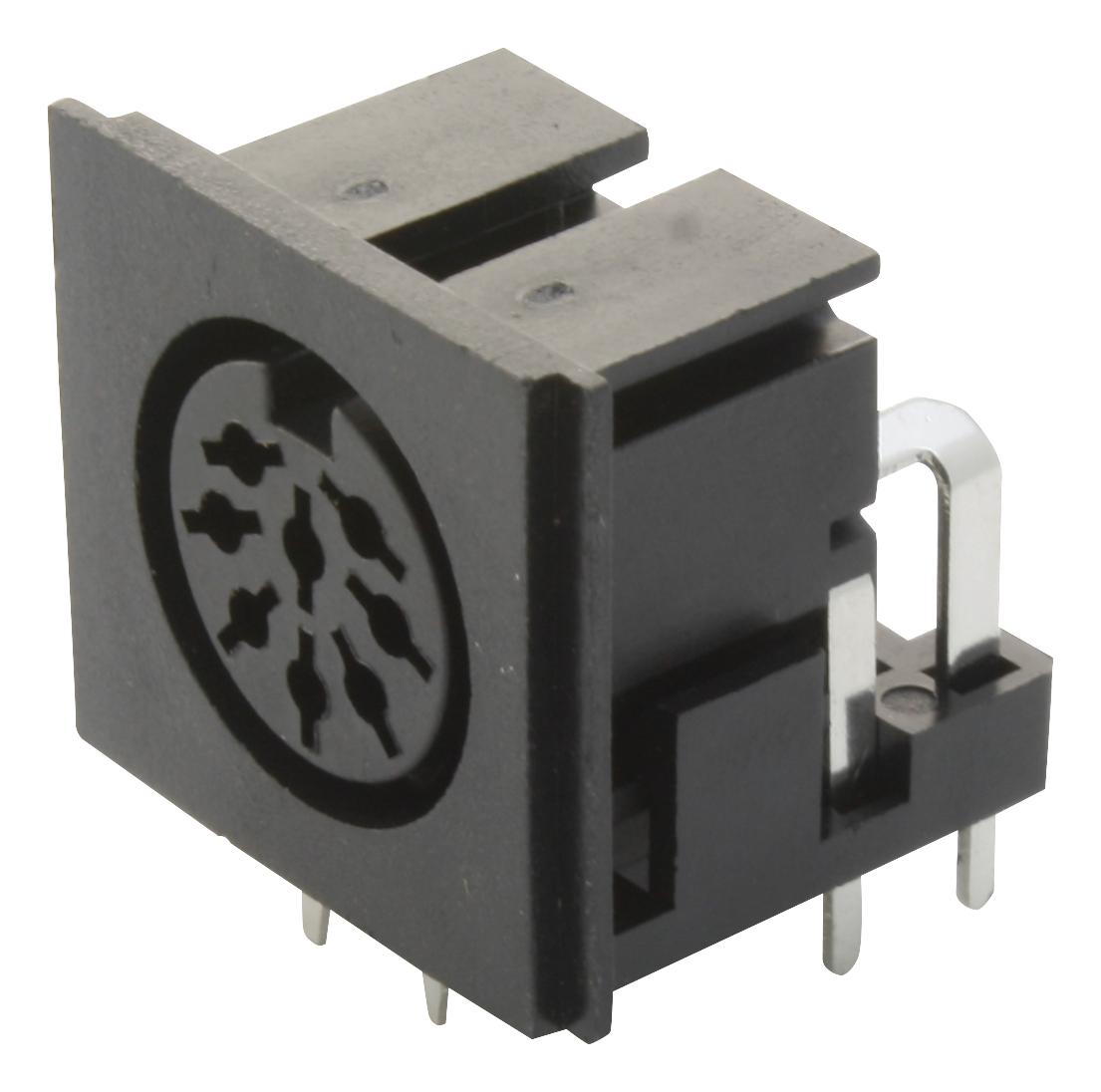

LUMBERG 0105081 DIN Circular Connector
The Lumberg 0105 08-1 is a robust DIN circular connector ideal for applications requiring a secure and reliable connection in printed circuit boards. Its angled design facilitates easy integration, while the ground contact and locking capability enhance safety and stability. Constructed with PBT insulating body and CuZn contact springs, this connector offers excellent durability and performance. It is commonly used in industrial automation, control systems, and other applications where DIN connectors are standard.
LUMBERG 0105081 DIN Circular Connector Specifications:
- Temperaturbereich: -20 °C/+70 °C
- Kontaktträger: PBT, V0 nach UL 94
- Kontaktfeder: CuZn, verzinnt
- Massekontakt: CuZn, verzinnt
- Deckel: PBT, V0 nach UL 94
- Steckkraft: 4,9–49 N
- Ziehkraft: 4,9–49 N
- Steckzyklen: 5000
- Durchgangswiderstand: ≤ 30 mΩ
- Bemessungsstrom: 4 A
- Bemessungsspannung: 24 V AC
- Prüfspannung: 500 V AC/60 s
- Isolationswiderstand: ≥ 100 MΩ
- Rated current: 4 A
- Rated voltage: 24 V AC
- Test voltage: 500 V AC/60 s
- Contact resistance: ≥ 100 MΩ
- Massekontaktstifte Abstand: 5 mm
- Verpackungseinheit: 100
