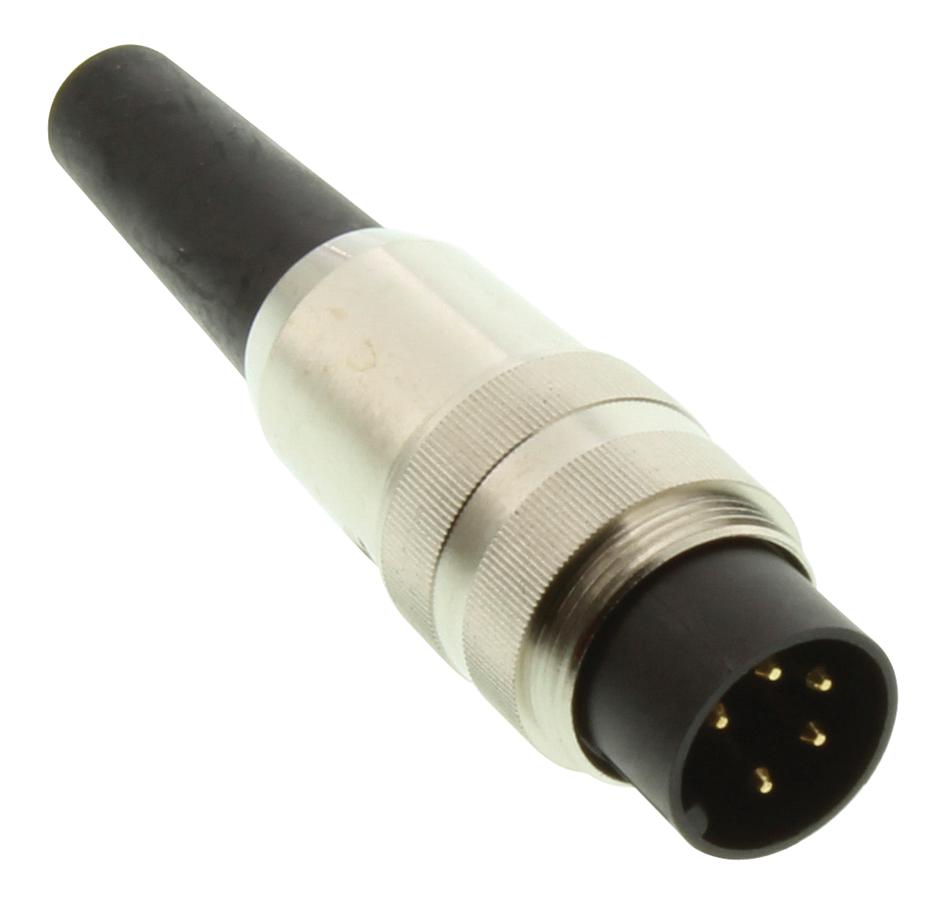

LUMBERG SV506 circular connector
The SV 50/6 from Lumberg is a five-pole circular connector plug featuring a threaded coupling mechanism. This straight variant includes a ground contact, solder terminals, and long bend protection made of TPE. It complies with IEC 61076-2-106 standards. The connector has a rated current of 5A, a rated voltage of 250VAC, and supports wire cross-sectional areas up to 0.75mm². Constructed from polyamide GF insulation material, it operates within a temperature range of -40°C to 85°C. The grounding spring is made of CuZn, pre-nickel, and tin-plated, while the housing and knurled nut are also CuZn, nickel-plated. It offers IP40 protection and is compatible with sockets KFR, KFV, KGR, KGV, KV, and WKV.
LUMBERG SV506 circular connector Specifications:
- Rated current: 5A
- Rated voltage: 250VAC
- Number of poles: 5
- Temperature range: -40°C to 85°C
- Material: PA GF insulation
- Ground contact: CuZn, pre-nickel, tin-plated
- Housing: CuZn, nickel-plated
- Knurled screw: CuZn, nickel-plated
- Protection rating: IP40
- Supports wire cross-section: up to 0.75mm²
- Compliance: IEC 61076-2-106
- Features: solder terminals, long bend protection, threaded coupling
Buy the Buy Lumberg Circular Connector Part Number SV506 Online
Purchase the Lumberg SV 50/6 circular connector plug online today. Designed for industrial automation, this 5-pin connector features IP40 protection, solder terminals, and long bend protection. Operating in temperatures from -40°C to 85°C, it supports wire sizes up to 0.75mm² and is compatible with various sockets. Made from durable polyamide GF insulation material with nickel-plated CuZn grounding spring, this connector ensures secure, reliable, and long-lasting connections perfect for demanding environments.
Get Lumberg SV 50/6 today—built for industrial wiring, with robust IP40 protection and long bend protection for reliable connections.
