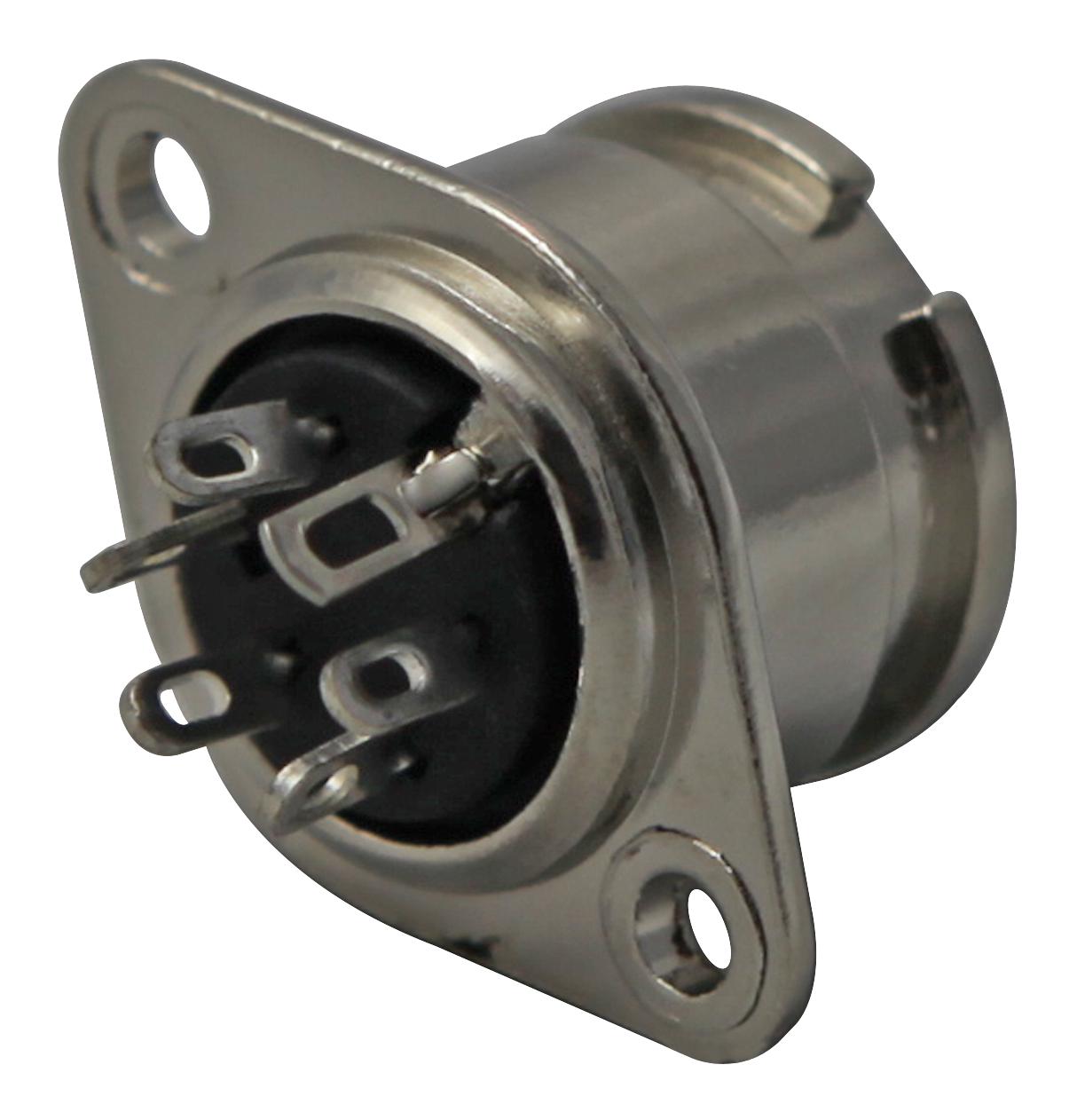

LUMBERG 0107051 DIN Circular Connector
The LUMBERG 0107 05-1 is a robust DIN circular connector designed for secure and reliable connections in various industrial applications. Featuring a shielded design, bayonet lock mechanism, metal housing, flange, and solder terminals, this connector offers excellent protection against electromagnetic interference and ease of integration into existing systems. Constructed with an ABS insulating body, silvered CuZn contact spring, and a nickeled Zn alloy housing, the 0107 05-1 ensures durability and long-term performance. It is compatible with DIN plugs 0132 and 0134, making it a versatile solution for a wide range of applications including industrial automation, power distribution, and control systems.
LUMBERG 0107051 DIN Circular Connector Specifications:
- Temperature Range: -20 °C/+85 °C
- Contact Material: CuZn, silvered
- Ground Contact Material: Cu, nickeled
- Housing Material: Zn alloy, nickeled
- Mating: DIN plugs 0132, 0134
- Contact Resistance: ≤ 30 mΩ
- Housing Resistance: ≤ 50 mΩ
- Rated Current: ≤ 4 A
- Rated Voltage: 60 V AC
- Test Voltage: 250 V AC RMS/60 s
- Insulation Resistance: ≥ 100 MΩ
- Packaging: Individual plastic bags, in a cardboard box
