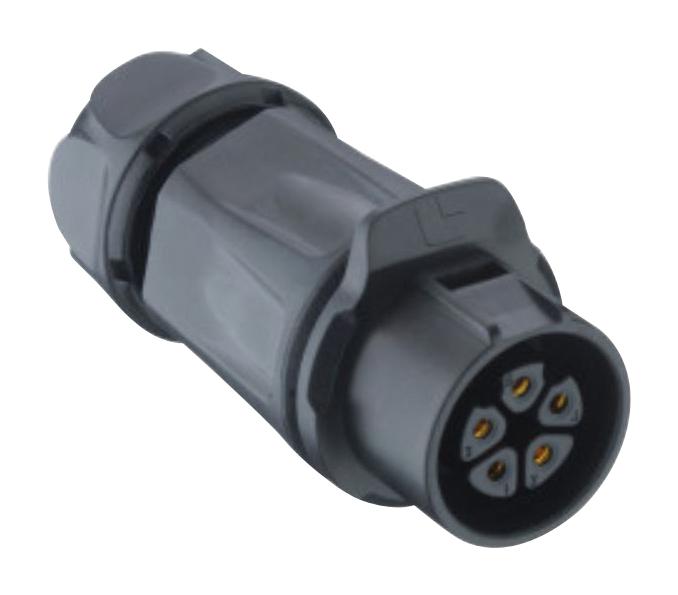

LUMBERG 026212 Industrial Circular Connector
The Lumberg E Quicklock circular connector is a reliable, IP67-rated socket designed for industrial applications. Featuring a plastic housing and solder terminals, it withstands harsh environmental conditions with a temperature range of -40°C to +80°C. It offers high mechanical durability with 1700 mating cycles, and an insertion force of 590N. Suitable for conductors with diameters from 40-115mm, it supports rated currents up to 20A for 2-4 poles and rated voltages of 500V. This connector ensures secure, corrosion-resistant connections for demanding environments.
LUMBERG 026212 Industrial Circular Connector Specifications:
- Protection Class: IP67
- Temperature Range: -40°C to +80°C
- Housing Material: PBT, V-0 UL94
- Contact Material: CuSn, gold-plated
- Mating Cycles: 1700
- Insertion Force: 590N
- Withdrawal Force: 40N
- Cable Diameter: 40-115mm
- Rated Current: 20A (2-4 poles), 12A (5-7 poles), 5A (9-12 poles)
- Rated Voltage: 500V
- Impulse Voltage: 2500V AC (2-7 poles), 1800V AC (9-12 poles)
- Contact Resistance: 5mΩ
- Creepage Distance: 2mm
- Clearance: 2mm
- Insulation Resistance: >500MQ
Buy the Lumberg IP67 Circular Connector 026212 – Reliable Industrial Solder Socket for Harsh Environments
Secure your industrial connections with the Lumberg E IP67 circular connector, featuring a robust plastic housing and solder terminals. Designed for harsh environments, it withstands temperatures from -40°C to +80°C and offers high durability with 1700 mating cycles. Suitable for conductors between 40 and 115 mm diameter, supporting rated currents up to 20A and voltages of 500V. Ideal for automation, machinery, and industrial control systems demanding reliable, waterproof, and corrosion-resistant connections for demanding environments.
Buy Lumberg IP67 circular connector with solder terminals now and ensure durable, corrosion-resistant connections in industrial applications.
Frequently Asked Questions
Where can I buy LUMBERG 026212?
You can click on the BUY or RFQ button to purchase 026212 from an authorized LUMBERG distributor.
How do I troubleshoot issues or seek technical support for part 026212?
You can download the 026212 datasheet or visit the LUMBERG website for support.
Who is the manufacturer of 026212?
LUMBERG
