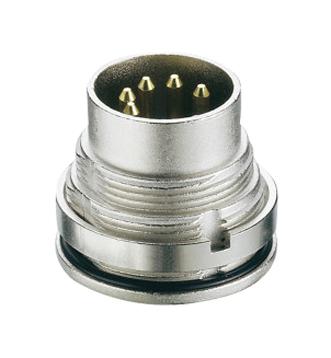

LUMBERG 031508 Circular Connector
The Lumberg E circular connector is a robust and versatile IP68/IP67 rated device with threaded joint, suitable for industrial applications requiring reliable electrical connections. Designed with solder terminals for back side mounting, it features a galvanized zinc housing, silver- and gold-plated contact pins, and is made from high-quality PA GF material compliant with UL94 V-0. It operates within a temperature range of -40°C to +85°C and supports conductors up to 0.75 mm². Its mechanical and electrical features ensure durable performance in demanding environments.
LUMBERG 031508 Circular Connector Specifications:
- Protection Class: IP68
- Temperature Range: -40°C to +85°C
- Housing Material: Zinc diecast, pre-copper and nickel-plated
- Insulating Body: PA GF, V-0 UL94
- Contact Material: CuZn, silver- and flash gold-plated (3-8 poles); CuZn, pre-nickel and gold-plated (12-14 poles)
- Sealing Material: NBR
- Tightening Torque: Connector 1 ± 3 Nm, Nut 1 ± 3 Nm
- Rated Current: 5 A (3-8 poles), 3 A (12-14 poles)
- Rated Voltage: Up to 300 V depending on version, pollution degree 2
- Cable Range: 0.75 mm² (AWG 20) for 3-8 poles, 0.25 mm² (AWG 24) for 12-14 poles
- Environmental Conditions: Suitable for operating temperatures from -40°C to +85°C
- Mechanical Design: Threaded joint, solder terminals, back side mounting
- Connector Type: Circular, with threaded joint, solder terminals
- Certification: IEC 61076-2-106, UL/CSA
- Certification Class: Overvoltage category 1, insulation resistance > 100 MO
Buy the Lumberg 031508 – Reliable Circular Connectors for Industrial Applications
Discover the durable and versatile circular connector ideal for industrial environments. Featuring IP68/IP67 protection, threaded joint design, and solder terminals, it ensures secure connections in demanding conditions. Made from high-quality zinc diecast with high-grade contact materials, it operates reliably from -40°C to +85°C. Suitable for various conductors up to 0.75 mm², it offers ease of mounting and long-lasting performance. Purchase this high-grade connector online today to ensure your industrial systems remain connected and operational in challenging environments.
Buy Lumberg 031508 now and experience unmatched reliability and performance in industrial and automation connections.
Frequently Asked Questions
Where can I buy LUMBERG 031508?
You can click on the BUY or RFQ button to purchase 031508 from an authorized LUMBERG distributor.
How do I troubleshoot issues or seek technical support for part 031508?
You can download the 031508 datasheet or visit the LUMBERG website for support.
Who is the manufacturer of 031508?
LUMBERG
