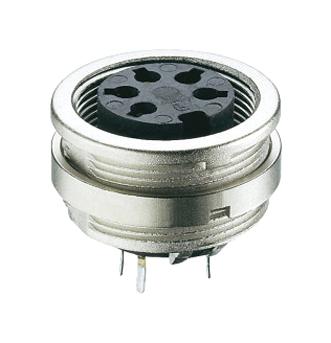

LUMBERG KFR120 industrial connector
The KFR120 is a high-quality connector designed for robust industrial applications, offering reliable electrical performance across various environments. It features a DIN M16 threaded joint complying with IEC 61076-2-106 standards, IP40 rated protection, and a durable zinc diecast housing. Its contact resistance is low at 5 milliohms, with rated currents of 3A or 5A depending on poles, and a maximum voltage of 250V or 300V. Suitable for printed circuit boards, it ensures secure mounting, with an operational temperature range from -40°C to +85°C, ideal for demanding industrial environments.
LUMBERG KFR120 industrial connector Specifications:
- Material: Insulating body PA GF, V-0 UL94, housing Zn diecast, contact bush CuZn, gold and tin-plated options
- Environmental conditions: Temperature range -40°C to +85°C, IP40/IP67/IP68 rated for protection
- Mechanical data: M16x0,75 threading, tightening torque +3Nm, insertion force 5.0N, withdrawal force 12N
- Electrical data: Contact resistance 5mΩ, rated current 3A or 5A, rated voltage up to 300V, overvoltage category I, insulation resistance >100MΩ
- Dimensions: B = 78mm, A varies with configuration; mounting hole diameter 10mm for PCB, dimensions suitable for front mounting
Buy the Buy Lumberg Industrial Connector Part Number KFR120 Online
Discover the high-performance Lumberg KFR120 industrial connector online today. Its robust zinc diecast housing, threaded M16 joint, and IP68/IP67 ratings make it ideal for industrial applications. Designed for PCB mounting, it ensures reliable electrical connectivity with low contact resistance, rated up to 300V and suitable for operating at temperatures from -40°C to +85°C. This connector’s durable construction guarantees long-term performance, making it a trusted choice for automation systems, control units, and manufacturing equipment. Buy now for seamless integration and dependable operation.
Buy Lumberg KFR120 connector now and ensure reliable connections in demanding industrial environments with its IP67/IP68 protection and durable design.
Frequently Asked Questions
Where can I buy LUMBERG KFR120?
You can click on the BUY or RFQ button to purchase KFR120 from an authorized LUMBERG distributor.
How do I troubleshoot issues or seek technical support for part KFR120?
You can download the KFR120 datasheet or visit the LUMBERG website for support.
Who is the manufacturer of KFR120?
LUMBERG
