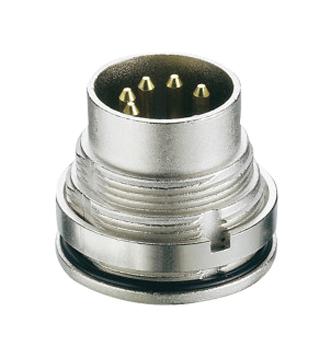

LUMBERG 031514 circular connector
The Lumberg E M16x0.75 circular connector with threaded joint is designed for reliable, splash-proof connections in various industrial environments. It features IP68 protection, making it suitable for back side mounting with solder terminals. Made from durable materials like zinc diecast housing, CuZn contact pins with gold plating, and a polyamide insulating body, it operates efficiently over a temperature range of -40°C to +85°C. Its compact design supports multiple pole configurations, rated currents up to 5 A, and voltage ratings up to 300 V, ensuring versatility and durability in demanding applications.
LUMBERG 031514 circular connector Specifications:
- Protection Class: IP68
- Material: Zinc diecast housing, CuZn contact pins with gold plating, Polyamide insulating body, NBR seal
- Temperature Range: -40°C to +85°C
- Rated Current: 5 A (3-8 poles), 3 A (12-14 poles)
- Rated Voltage: Up to 300 V, varies by version
- Pin Configuration: 3 to 14 poles
- Tightening Torque: 1 ± 0.3 Nm
- Environmental Resistance: Water and dust proof (IP68), high mechanical durability
- Connectable Conductors: 0.75 mm² AWG 20 (3-8 poles), 0.25 mm² AWG 24 (12-14 poles)
- Dimensions: Compatible with M16x0.75 threaded joint, suitable for back mounting
Buy the Buy Lumberg Circular Connector Part Number 031514 Online
Purchase the Lumberg Series031514 circular connector online today to benefit from durable design, IP68 protection, and versatile configurations. Ideal for industrial applications demanding reliable, splash-proof connections, this connector features high-quality zinc diecast housing, gold-plated copper contacts, and a broad temperature range. Its compact, robust structure supports multiple pin configurations with rated currents up to 5 A and voltages up to 300 V. Quickly integrate this connector into your projects and enjoy dependable, secure connections in harsh environments, available with fast shipping and easy ordering.
Order your Lumberg Series031514 M16x0.75 circular connector today and secure durable, reliable connections for industrial projects.
Frequently Asked Questions
Where can I buy LUMBERG 031514?
You can click on the BUY or RFQ button to purchase 031514 from an authorized LUMBERG distributor.
How do I troubleshoot issues or seek technical support for part 031514?
You can download the 031514 datasheet or visit the LUMBERG website for support.
Who is the manufacturer of 031514?
LUMBERG
