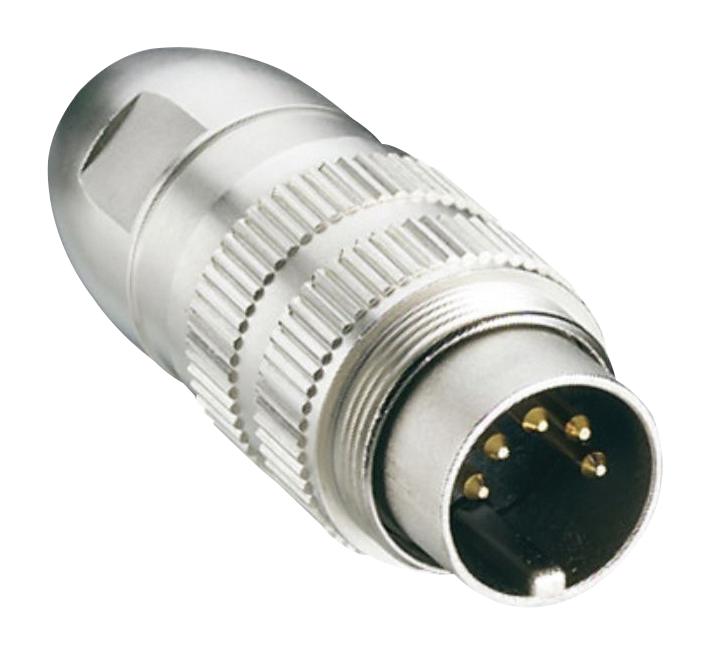

LUMBERG 033103 M16 Circular Connector Plug
The LUMBERG 0331 03 is a robust M16 circular connector plug designed for demanding industrial applications. Featuring a threaded joint according to IEC 61076-2-106 and IP67/IP68 ingress protection, it ensures a secure and reliable connection even in harsh environments. The connector utilizes PA GF V-0 insulating body, CuZn contact pins (silver-plated and flash gold-plated for 3-8 poles, pre-nickel and gold-plated for 12-14 poles), a nickel-plated housing, and a NBR seal. It supports a temperature range of -40°C to +85°C, a tightening torque of 1-3 Nm, and is available in various pole configurations (3 to 14) to accommodate diverse wiring needs. Commonly used in automation, power transmission, and sensor applications.
LUMBERG 033103 M16 Circular Connector Plug Specifications:
- Temperature Range: -40 °C / +85 °C
- Insulating Body Material: PA GF, V-0 (UL94)
- Contact Pin Material (3-8 poles): CuZn, silver-plated and flash gold-plated
- Contact Pin Material (12-14 poles): CuZn, pre-nickel and gold-plated
- Housing Material: CuZn, nickel-plated
- Knurled Screw Material: CuZn, nickel-plated
- Seal Material: NBR
- Tightening Torque (Connector): 1-3 Nm
- Tightening Torque (Nut): 1-3 Nm
- Protection Class: IP68 (IEC 60529, locked condition)
- Connectable Conductor Section: ≤ 0.75 mm² (AWG 20), ≤ 0.25 mm² (AWG 24)
- Cable Diameter: 4–8 mm
- Rated Current (Tamb 40 °C, 3-8 poles): 5 A
- Rated Current (Tamb 40 °C, 12-14 poles): 3 A
- Rated Voltage: 250 V (specific versions), 60 V (specific versions)
- Rated Impulse Voltage: 2000 V (specific versions), 1000 V (specific versions)
- Insulation Resistance: > 100 MΩ
- Pole Options: 3, 4, 5, 6, 7, 8, 12, 14
- Packaging: Sets of individual parts in plastic bags, in a cardboard box
- Minimum Order Quantity (MOQ): 100 Pieces
