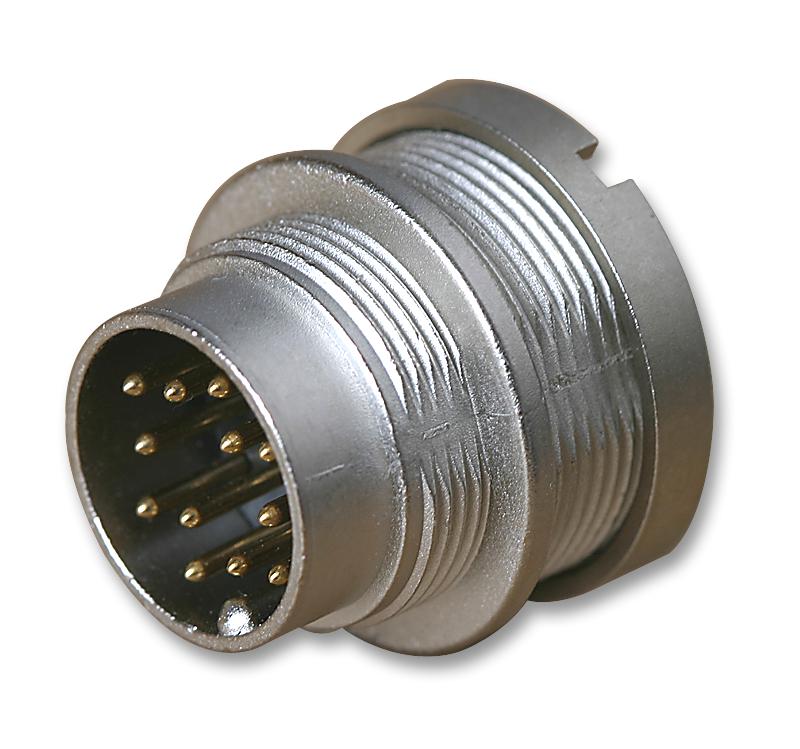

LUMBERG SFV120 12-pole chassis connector
The SFV 120 is a 12-pole chassis plug with a threaded connection, designed for front mounting and made of durable GF polyamide. Its zinc die-cast housing is pre-copper and nickel-plated, ensuring excellent corrosion resistance. Contact pins are copper-zinc, nickel and gold-plated for reliable electrical performance. Rated at IP40 protection, the plug operates within a temperature range of -40°C to +85°C. Suitable for audio, video, imaging, and vision system applications, it complies with UL94V-0 flammability standards, providing a robust and safe connection solution.
LUMBERG SFV120 12-pole chassis connector Specifications:
- Temperature range: -40°C to +85°C
- Material: Insulating body made of PA GF, V-0 UL94 flame rating
- Housing: Zinc diecast, pre-copper and nickel-plated
- Contact pins: Copper-zinc, nickel and gold-plated
- Protection class: IP40
- Rated current: 3 A (12 poles)
- Rated voltage: Up to 300 V depending on version
- Connection type: Threaded joint M16x0.75
- Tightening torque: 3 Nm
- Suitable for: Solder terminals, front mounting
- Poles: 12
- Environmental conditions: -40°C to +85°C
- UL94V-0 flammability rating
- Compatibility: KV and WKV sockets
Buy the Buy Lumberg Connectors Part Number SFV120 Online
Order the Lumberg SFV120 online today to ensure seamless and reliable connections for your audio, video, and imaging systems. Crafted with durable materials, it features a threaded design for secure mounting, nickel-gold contact plating for excellent conductivity, and an IP40 rating for protection against dust and light incidental contact. Operating within a wide temperature range, it’s ideal for professional environments requiring high performance and safety standards. Get your SFV120 connector now for easy integration into your sensitive electronic setups.
Buy Lumberg SFV120 now and experience unmatched reliability and performance in professional audio, video, imaging, and vision system applications.
Frequently Asked Questions
Where can I buy LUMBERG SFV120?
You can click on the BUY or RFQ button to purchase SFV120 from an authorized LUMBERG distributor.
How do I troubleshoot issues or seek technical support for part SFV120?
You can download the SFV120 datasheet or visit the LUMBERG website for support.
Who is the manufacturer of SFV120?
LUMBERG
