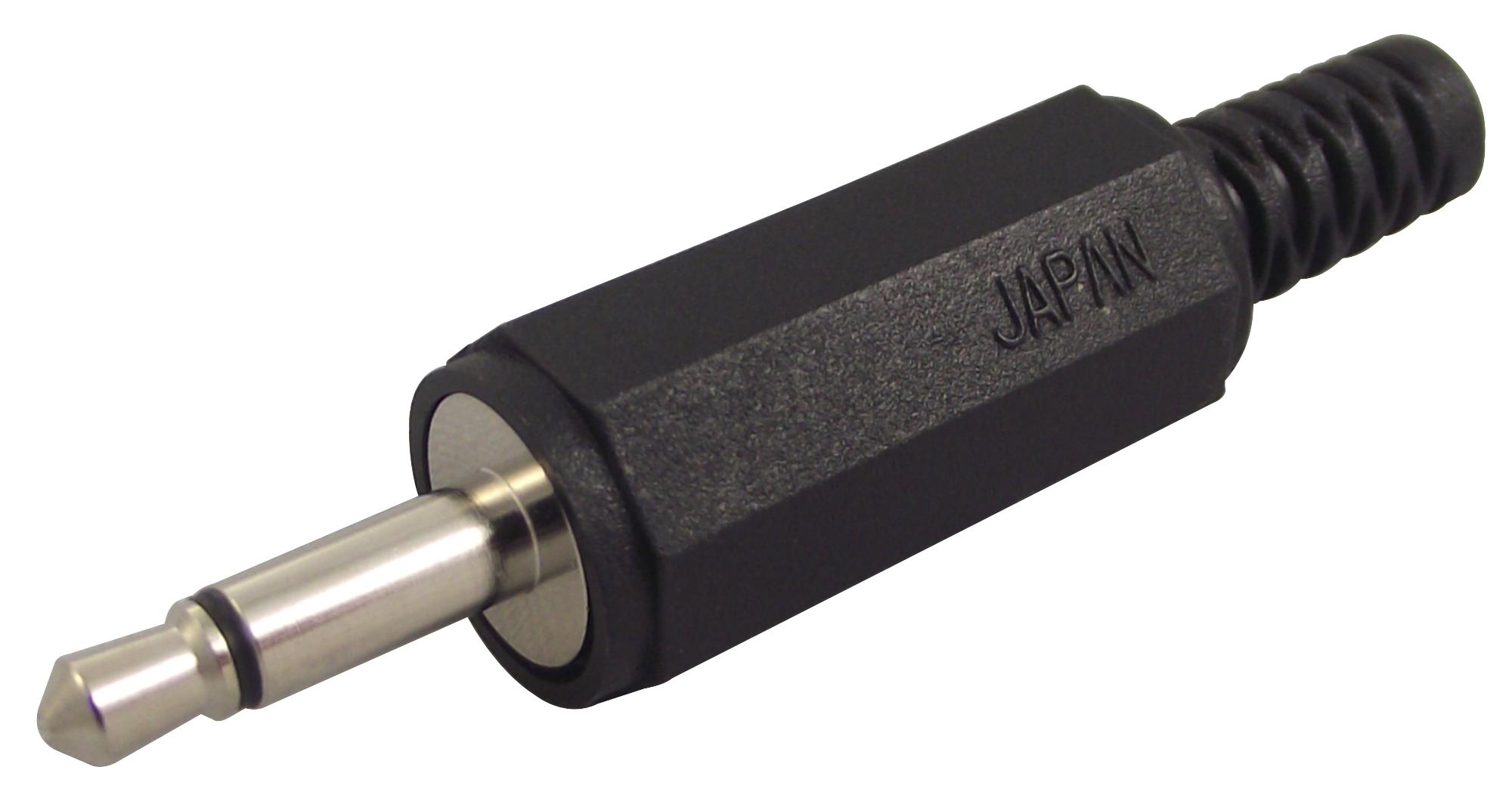

LUMBERG 153206 Audio Jack Connector
The 1532 06 is a 2-way, 3.5mm mono straight jack connector with nickel-plated CuZn contacts and solder terminals, suitable for audio connections. It features an ABS insulation body, conical head design, bend protection, and robust construction capable of over 5000 mating cycles. The electrical specifications include a rated voltage of 34V AC/DC, a maximum current of 1A, contact resistance below 50 milliohms, and insulation resistance exceeding 100 megaohms. Ideal for professional audio equipment and electronic projects requiring reliable, high-quality connections.
LUMBERG 153206 Audio Jack Connector Specifications:
- Temperature Range: -20°C to +70°C
- Contact Material: CuZn, Nickel-plated
- Insulating Body: ABS
- Housing Material: PE
- Insulation: Hard rubber, PVC
- Electrical Ratings: 34V AC/DC, 1A
- Contact Resistance: <50mΩ
- Insulation Resistance: >100 MΩ
- Mechanical Life: >5000 mating cycles
- Connecting Type: Solder terminals
- Design: Straight, conical head, bend protection
- Applicable Standards: JIS C 6560
- Application: Audio equipment, electronic devices
Buy the Lumberg 153206 – Reliable Audio Jack Connector for Industrial Applications
Enhance your electronic and audio equipment with the Lumberg 153206 audio jack connector. Featuring nickel-plated contacts, bend protection, and a robust construction, this connector offers over 5000 mating cycles and reliable electrical performance. Its straight design and solder terminals make installation straightforward. Perfect for professional audio systems, shipping, and industrial applications, this connector ensures durability, safety, and consistent signal quality. Purchase online now to upgrade your devices with high-performance connection solutions that guarantee long-term reliability and excellent functionality.
Buy Lumberg 153206 now and experience unmatched reliability and high-quality audio connections for industrial and professional use.
