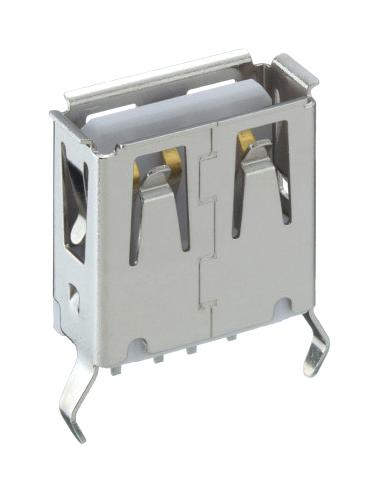

LUMBERG 241011 USB 2.0 Type A Socket
The LUMBERG 2410 11 is a robust USB 2.0 Type A chassis socket engineered for secure and reliable connections in printed circuit boards. Its upright design simplifies integration into various enclosures. Constructed with a nickel-plated steel housing and gold-plated copper zinc contact springs, the connector offers excellent durability and signal integrity. Suitable for industrial applications requiring a dependable USB connection, it supports a rated current of 1.5A and a rated voltage of 30V DC, with a rated impulse voltage of 500V. The connector is packaged in a tray and supports up to 1500 mating cycles.
LUMBERG 241011 USB 2.0 Type A Socket Specifications:
- Temperature Range: −45 °C to +85 °C
- Insulating Body Material: PBT, V-0 (UL94)
- Contact Spring Material: CuZn, gold-plated
- Housing Material: Steel, nickel-plated
- Mating Cycles: 1500
- Insertion Force: ≤ 35 N
- Withdrawal Force: ≥ 10 N
- Contact Resistance: ≤ 30 mΩ
- Rated Current: ≤ 1.5 A
- Rated Voltage: 30 V DC
- Rated Impulse Voltage: 500 V/60 s
- Insulation Resistance: ≥ 1 GΩ
- Pole Number: 4
- PU (Pieces): 100
- MDQ (Pieces): 500
- Packaging: in a tray
