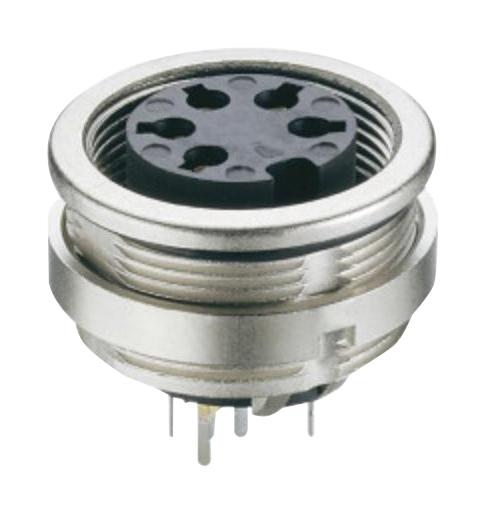

LUMBERG 0306071 Circular Threaded Connector
The LUMBERG 0306 07-1 is a robust circular connector designed for reliable connections in industrial applications. It features a threaded M16 joint, ensuring a secure and sealed connection with an IP67/68 rating for protection against dust and water ingress. The connector is suitable for printed circuit board front mounting and is constructed with high-quality materials including PA GF (V-0 UL94) for the insulating body and CuZn with silver-plated and tin-plated contacts. It is ideal for applications requiring a durable and environmentally protected connection, such as industrial automation, outdoor equipment, and power transmission.
LUMBERG 0306071 Circular Threaded Connector Specifications:
- Temperature Range: -40 °C / +85 °C
- Insulating Body Material: PA GF, V-0 (UL94)
- Contact Bush Material: CuZn, silver-plated and flash gold-plated, tin-plated in solder area (3-8 poles)
- Housing Material: Zn diecast, pre-copper and nickel-plated
- Ring Screw Material: CuZn, nickel-plated
- Seal Material: CR (flat), NBR (O-ring)
- Insertion Force/Contact: ≤ 5.0 N
- Withdrawal Force/Contact: ≥ 1.2 N (3-8 poles) / ≥ 0.9 N (12-14 poles)
- Tightening Torque Connector: 1-3 Nm
- Tightening Torque Nut: 1-3 Nm
- Protection Class: IP68
- Rated Current (3-8 poles): 5 A (Tamb 40 °C)
- Rated Current (12-14 poles): 3 A (Tamb 40 °C)
- Rated Voltage (Versions 03, 04, 05-1, 06, 07): 300 V
- Rated Voltage (Versions 05, 07-1, 08, 08-1): 100 V
- Rated Voltage (Versions 12, 14): 160 V
- Rated Impulse Voltage: 1500 V
- Material Group: II (IEC) / 1 (UL)
- Insulation Resistance: > 100 MΩ
- A Dimension: 16.0 mm
- B Dimension: 17.8 mm
- Pole Options: 3, 4, 5, 6, 7, 8, 12, 14
- Packaging: Cardboard box
