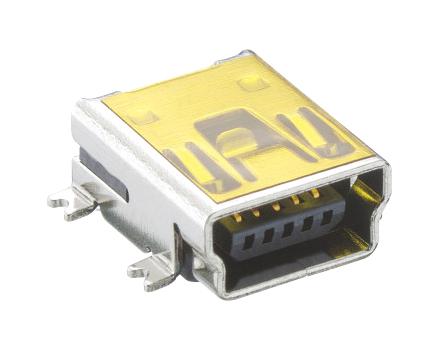

LUMBERG 248604 USB Connector
The Mini USB 2.0 chassis socket type B features 5 poles and an angular design optimized for printed circuit boards with surface mounting technology (SMT). Made with high-quality materials such as LCP housing, gold-plated contact springs, and tin-plated solder areas, it offers reliable connectivity for various electronic devices. Designed to withstand 5000 mating cycles, it operates within -40°C to +85°C temperature range. Rated for 1A current and 30V DC, this durable connector ensures stable data transfer and electrical performance in demanding environments.
LUMBERG 248604 USB Connector Specifications:
- Pin Count: 5 poles
- Housing Material: LCP, V-0 according to UL94
- Contact Material: Copper alloy, gold-plated in mating area, tin-plated in solder area
- Temperature Range: -40°C to +85°C
- Mechanical Durability: 5000 mating cycles
- Insertion Force: 35N
- Withdrawal Force: 7N
- Electrical Ratings: 1A, 30V DC, 300V impulse voltage
- Contact Resistance: 50mΩ
- Insulation Resistance: 100MΩ
- Mating Durability: Up to 5000 cycles
Buy the Buy Lumberg USB Connector Part Number 248604 Online
Purchase the Lumberg USB connector 248604 online today for your electronic projects, ensuring high-quality connections with reliable electrical performance. This miniature 5-pole USB socket features surface-mount design, durable construction, and is rated for 1A current and 30V DC. Perfect for demanding environments, it withstands up to 5000 mating cycles and operates reliably from -40°C to +85°C. With superior contact materials and fast installation, this connector is ideal for ensuring consistent data transfer and electrical integrity in your device designs.
Get Lumberg 248604 today—built for reliable data connections and long-lasting durability
Frequently Asked Questions
Where can I buy LUMBERG 248604?
You can click on the BUY or RFQ button to purchase 248604 from an authorized LUMBERG distributor.
How do I troubleshoot issues or seek technical support for part 248604?
You can download the 248604 datasheet or visit the LUMBERG website for support.
Who is the manufacturer of 248604?
LUMBERG
