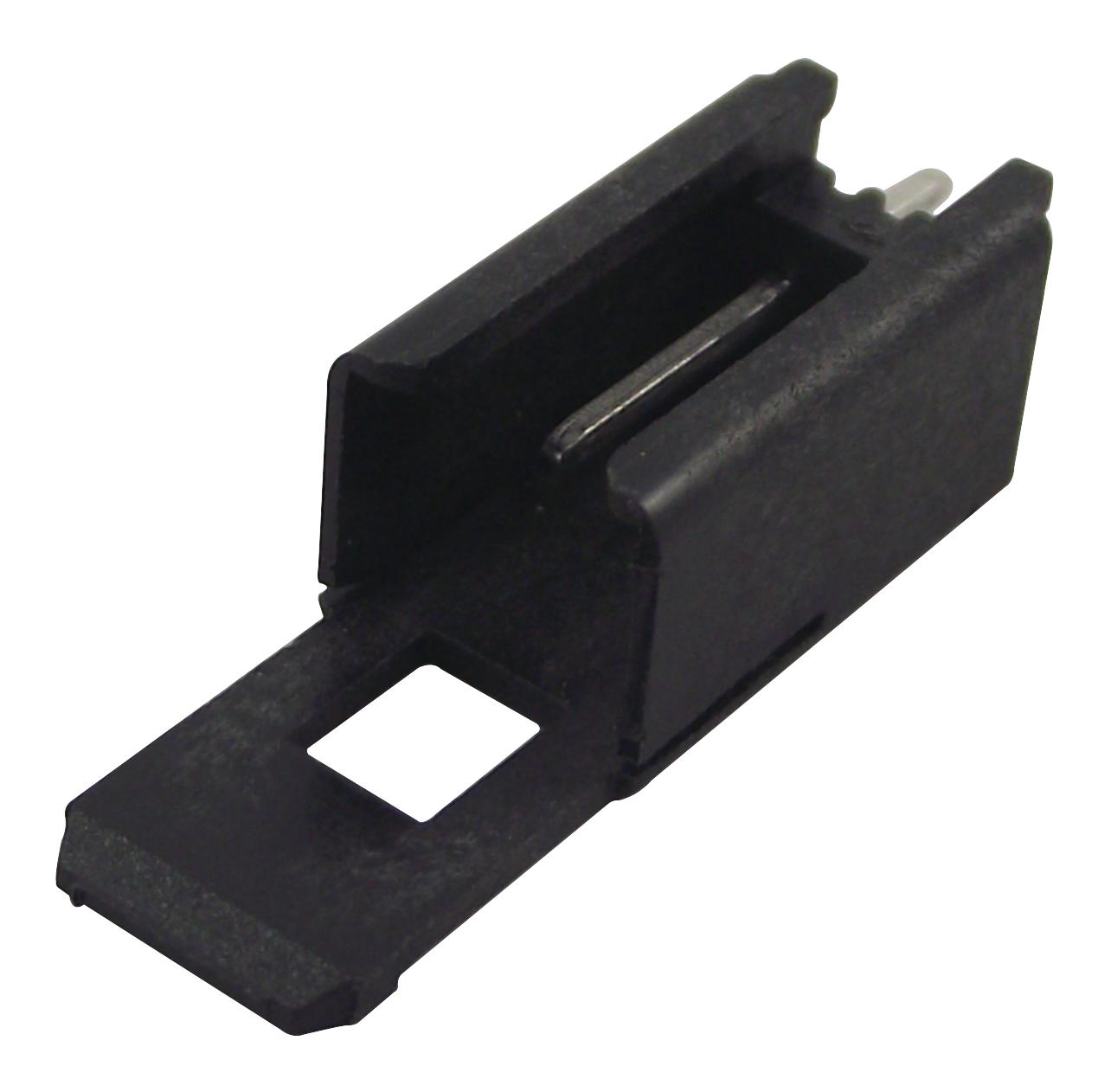

LUMBERG 25MSF023114 Minimodul Pin Header
The Lumberg 2,5 MSF 02 (3114) Minimodul pin header is a compact and reliable connector solution designed for a wide range of industrial applications. Featuring an upright design with a locking latch and solder contacts, it ensures secure and stable connections. Constructed with a PA GF V-0 insulating body and pre-nickel and tin-plated CuZn contact pins, this connector offers excellent durability and performance. It is rated for a temperature range of -40 °C to +120 °C and supports a rated current of 5 A at 60 °C. The Minimodul design is ideal for applications where space is limited and reliable connectivity is essential.
LUMBERG 25MSF023114 Minimodul Pin Header Specifications:
- Temperature Range: -40 °C / +120 °C
- Insulating Body Material: PA GF, V-0 (UL94)
- Contact Pin Material: CuZn, pre-nickel and tin-plated
- Rated Current: 5 A (TU 60 °C)
- Rated Voltage: 160 V AC
- Material Group: IIIa (IEC) / 2 (UL)
- Creepage Distance: 1.9 mm
- Clearance: 1.9 mm
- Insulation Resistance: > 1 GΩ
- Pole Number: 2
- PU (Pieces): 250
- MDQ (Pieces): 2000
- A (mm): 7.9
- B (mm): 5.9
- C (mm): 4.3
- D (mm): 2.5
Buy the 2,5 MSF 02 (3114) Lumberg Minimodul Pin Header | myMectronic
Purchase the Lumberg 2,5 MSF 02 (3114) Minimodul pin header securely and efficiently online.
