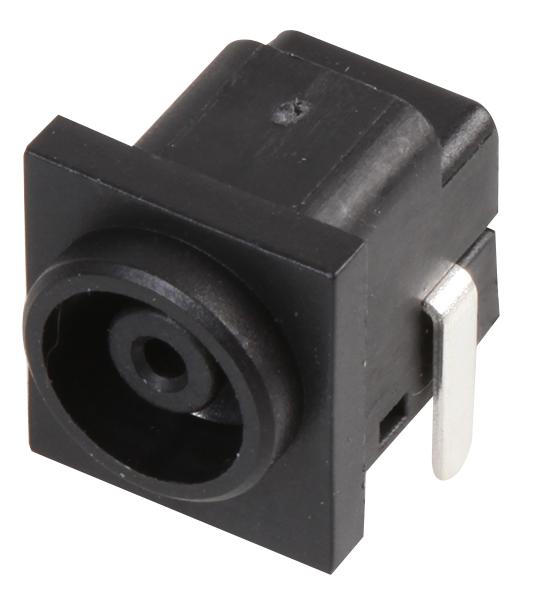

LUMBERG 161311 Power Supply Connector
The LUMBERG 1613 11 is a robust power supply chassis socket conforming to the JEITA RC-5320A standard. Designed with an angular configuration and a break contact, it's ideal for printed circuit board applications where a secure and reliable power connection is required. Constructed with a PBT insulating body (V0 rated per UL 94) and silvered copper alloy contacts, this connector ensures excellent electrical performance and durability. It's suitable for a wide range of industrial equipment and power supply systems.
LUMBERG 161311 Power Supply Connector Specifications:
- Temperature Range: -20 °C/+70 °C
- Materials_Contact Carrier: PBT, V0 (UL 94)
- Materials_Contact: Cu Alloy, Silvered
- Opening Diameter: 7.0 mm
- Insulation Diameter: 4.0 mm
- Center Hole Diameter: 1.45 mm
- Insertion Force: 4.9–29.4 N
- Withdrawal Force: ≥ 9.8 N
- Mating Cycles: ≥ 5000
- Contact Resistance: ≤ 30 mΩ
- Current Rating: 2 A
- Nominal Voltage: 18 V DC
- Test Voltage: 500 V/60 s
- Insulation Resistance: ≥ 100 MΩ
- Packaging: Bulk in cardboard box or plastic bag
- Poles: 2
- Package Unit: 250
