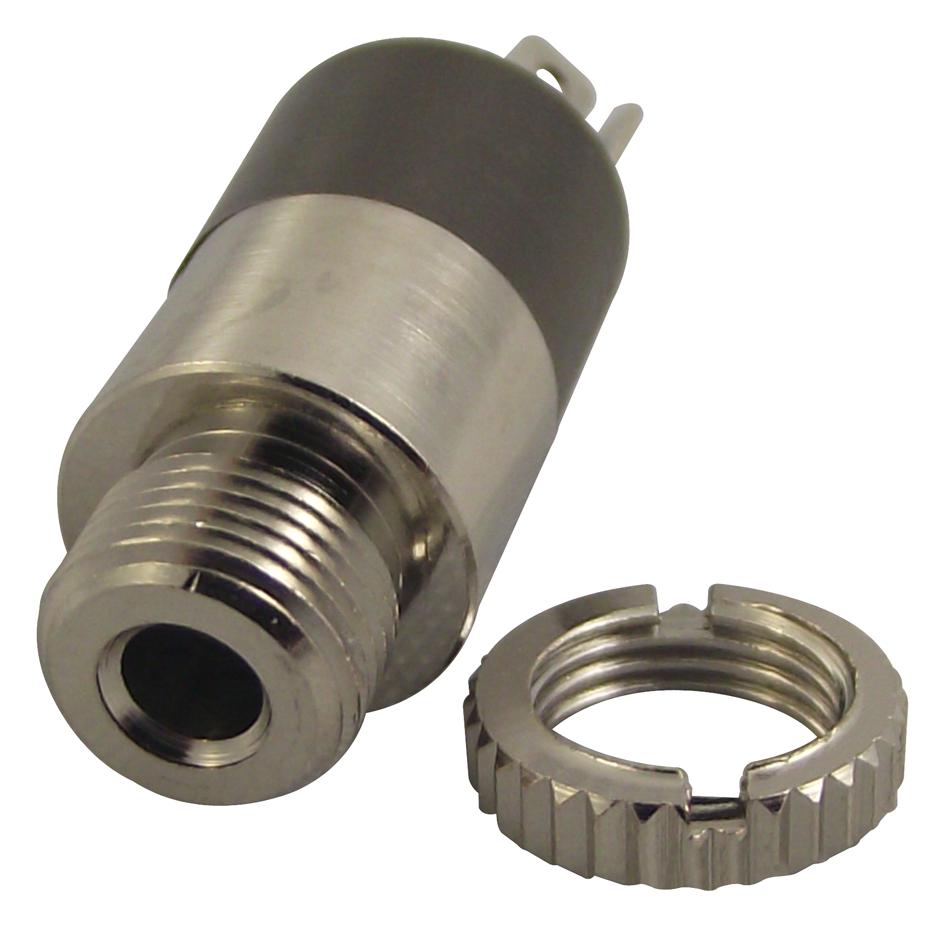

LUMBERG KLB13 Stereo Jack Connector
The KLB 13 is a precision 3-pole stereo jack chassis socket designed for reliable audio connections. Constructed with nickel-plated and gilded CuZn and Cu alloys, it features a PBT GF insulating body with solder eyes for easy rear mounting. Rated for 34V AC/DC and 0.5A, it offers low contact resistance below 50 milliohms and insulation resistance of 100 megaohms. Suitable for back-side mounting in audio equipment, it supports over 5000 mating cycles for long-lasting performance in professional and consumer audio installations.
LUMBERG KLB13 Stereo Jack Connector Specifications:
- Temperature Range: -20°C to +70°C
- Contact Material: CuZn/Cu alloy, nickel-plated/gilded
- Body Material: PBT GF, VO UL 94
- Housing Material: CuZn, nickel-plated
- Nut Material: CuZn, nickel-plated
- Insertion Force: 5-20 N
- Withdrawal Force: 4-20 N
- Mating Cycles: > 5000
- Rated Current: 0.5 A
- Rated Voltage: 34 V AC/DC
- Test Voltage: 500 V/60 s
- Contact Resistance: < 50 mΩ
- Insulation Resistance: 100 MQ
- Temperature Range: -20°C to +70°C
Buy the Lumberg Series KLB Jack: KLB13
Purchase the Lumberg KLB13 stereo jack chassis socket online to ensure reliable, high-quality audio connections. Designed with nickel-plated contacts and a robust PBT GF insulating body, it supports over 5000 mating cycles and rated for 34V AC/DC at 0.5A. Its solder eye allows for secure rear mounting, ideal for audio equipment assembly. Whether for professional studios or home audio setups, this connector offers durability, excellent electrical performance, and ease of installation. Order online now for fast delivery and premium quality.
Get Lumberg KLB13 today—built for precise audio connections and long-lasting durability in professional and consumer equipment.
Frequently Asked Questions
Where can I buy LUMBERG KLB13?
You can click on the BUY or RFQ button to purchase KLB13 from an authorized LUMBERG distributor.
How do I troubleshoot issues or seek technical support for part KLB13?
You can download the KLB13 datasheet or visit the LUMBERG website for support.
Who is the manufacturer of KLB13?
LUMBERG
