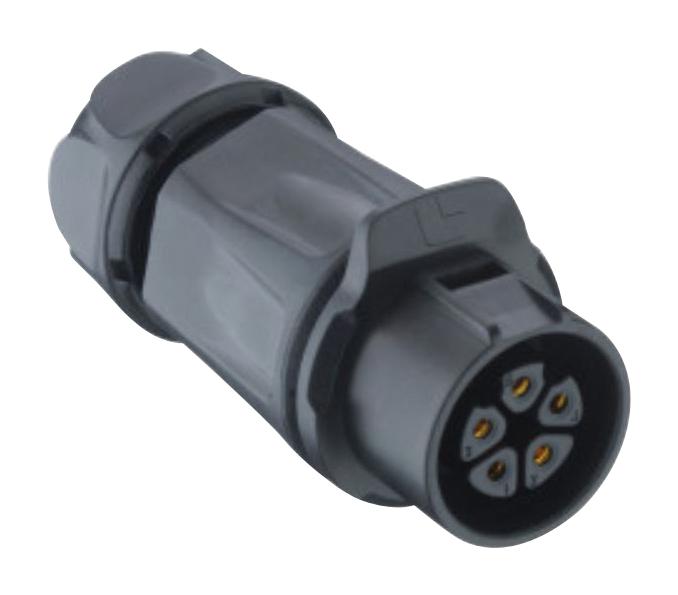

LUMBERG 026209 Quicklock Circular Connector
The Lumberg E Quicklock circular connectors are IP67-rated, suitable for demanding environments with temperature ranges from -40°C to +80°C. These connectors feature a plastic housing with solder terminals, available in straight versions with size 20. They are designed for reliable connections with a high number of mating cycles (1700) and are approved with cCé Wks certification. Designed for easy installation, they support conductors up to 2.5mm² for 2-4 poles, featuring a robust design with protection class IP67, ensuring waterproof and dustproof performance in industrial applications.
LUMBERG 026209 Quicklock Circular Connector Specifications:
- Environmental Conditions: Temperature range -40°C to +80°C
- Materials: Insulating body/handle made from PBT, V-0 UL94; Contact bush made of CuSn, gold-plated; Cap nut made from PBT, V-0 UL94
- Mechanical Data: Mating cycles 1700, Insertion force 590N, Withdrawal force 40N, Protection class IP67
- Connectors for Soldered Conductors: Section 2.5mm² (2-4 poles), 15mm² (5-7 poles), 10mm² (9-12 poles)
- Cable Diameter Range: 40-115 mm
- Electrical Data: Contact resistance 5mΩ, Rated current 20A (2-4 poles), 12A (5-7 poles), 5A (9-12 poles), Rated voltage 500V, Impulse voltage 2500V AC (2-7 poles), 1800V AC (9-12 poles), Creepage distance 2mm, Clearance 2mm, Insulation resistance >500 MΩ
Buy the Lumberg Series Quicklock Circular Connectors: 026209
Upgrade your industrial setups with the durable Lumberg E Quicklock Circular Connector featuring IP67 protection, ideal for demanding environments. Its waterproof design, high mating cycle capacity, and easy solder terminal connections make it perfect for reliable, waterproof, and dustproof connections. Suitable for conductors from 2.5mm² to 15mm², it withstands extreme temperatures from -40°C to +80°C. Order online today to enjoy a robust, waterproof industrial connector that ensures safety and dependable performance in your equipment.
Buy Lumberg E Quicklock circular connector with IP67 protection now and ensure reliable, waterproof connections for your industrial applications.
Frequently Asked Questions
Where can I buy LUMBERG 026209?
You can click on the BUY or RFQ button to purchase 026209 from an authorized LUMBERG distributor.
How do I troubleshoot issues or seek technical support for part 026209?
You can download the 026209 datasheet or visit the LUMBERG website for support.
Who is the manufacturer of 026209?
LUMBERG
