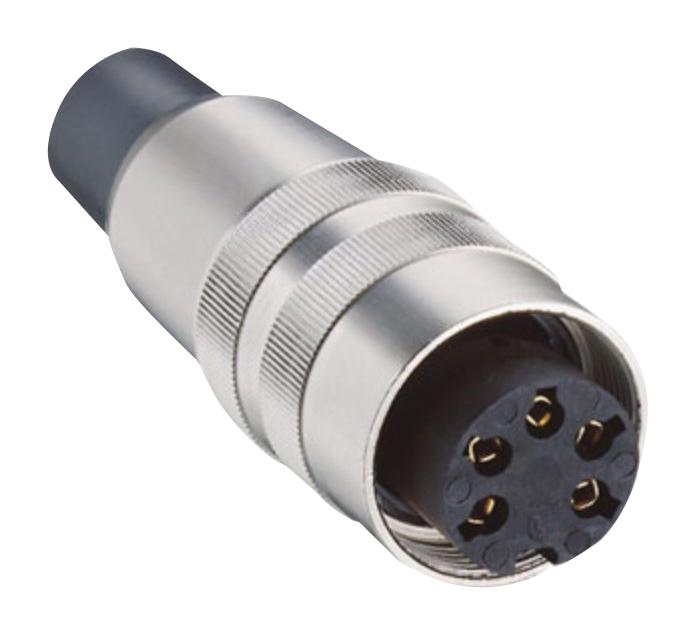

LUMBERG KV1208 circular connector
The product is a circular connector with a threaded joint M16 according to IEC 61076-2-106, offering IP40/IP67/IP68 environmental protection levels. It features solder terminals, short bend protection, and is suitable for various environmental conditions with a temperature range from -40°C to +85°C. Made with durable materials including PA GF insulating bodies, CuZn contact bushes, and nickel-plated steel screws, it supports easy installation with specified torque values and is designed for reliable electrical connections in industrial applications.
LUMBERG KV1208 circular connector Specifications:
- Environmental Conditions: Temperature range -40°C/+85°C
- Material: PA GF insulating body, CuZn contact bush, nickel-plated steel screw
- Protection Levels: IP40, IP67, IP68
- Connection: Solder terminals, short bend protection
- Mechanical Data: Insertion force 5.0 N (8 poles), withdrawal force 0.9 N, tightening torque +3 Nm
- Electrical Data: Rated current 5A (3-8 poles), 3A (12 poles); Rated voltage up to 300V (pollution degree 1), 250V (pollution degree 2); Contact resistance 5 mΩ
- Cable Compatibility: 0.75 mm² (AWG 20), 0.25 mm² (AWG 24), cable diameter 6-8 mm
- Pin Configuration: Poles 2, 3, 4, 5, 6, 7, 8, 12 with respective configurations
- Part Number: KV1208
- Packaging: Pre-assembled in a cardboard box
Buy the Buy Lumberg Circular Connectors Part Number KV1208 Online
Discover the durable and reliable circular connector with threaded M16 joint, designed for demanding industrial environments. Featuring IP68 protection, solder terminals, and short bend protection, this connector supports a temperature range from -40°C to +85°C. Made of high-quality materials including PA GF, CuZn, and nickel-plated steel, it ensures long-lasting performance for various electrical and mechanical applications. Purchase online today to benefit from easy installation, robust construction, and excellent electrical properties fitting your industrial connectivity needs.
Buy Lumberg KV1208 now and experience unmatched reliability and high-performance industrial connections in harsh environments.
Frequently Asked Questions
Where can I buy LUMBERG KV1208?
You can click on the BUY or RFQ button to purchase KV1208 from an authorized LUMBERG distributor.
How do I troubleshoot issues or seek technical support for part KV1208?
You can download the KV1208 datasheet or visit the LUMBERG website for support.
Who is the manufacturer of KV1208?
LUMBERG
