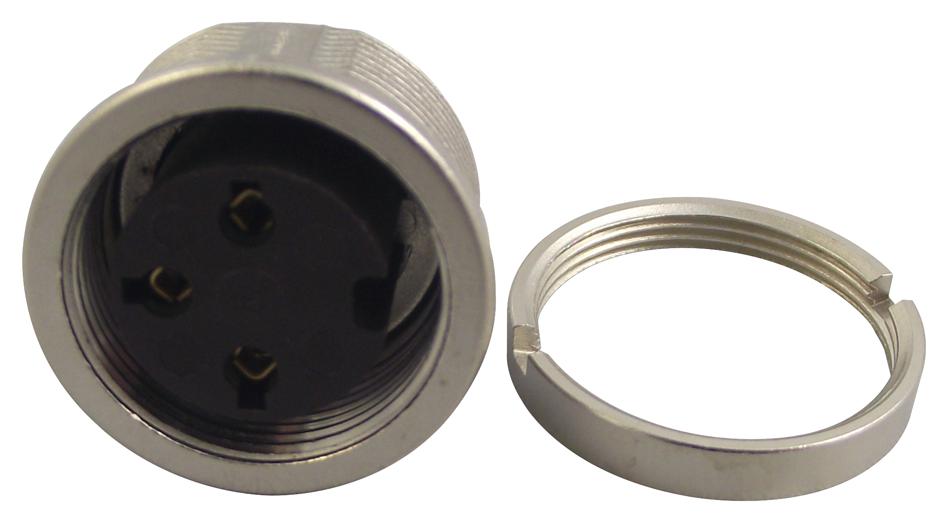

LUMBERG KFV30 Industrial Circular Connector
The Lumberg E circular connector with threaded joint M16 complies with IEC 61076-2-106 standards, providing IP40/IP67/IP68 protection ratings. It features solder terminals for front mounting and is suitable for a wide temperature range from -40°C to +85°C. Comprising durable materials such as PA GF insulating bodies, CuZn contact bushings with gold or silver plating, and zinc diecast housings, it supports multiple pole configurations from 3 to 12 contacts. Designed for reliable electrical connections in industrial environments, it ensures secure fastening with specified torque values and robust contact resistance performance.
LUMBERG KFV30 Industrial Circular Connector Specifications:
- Protection Class: IP40, IP67, IP68
- Temperature Range: -40°C to +85°C
- Insulating Body: PA GF, V-0 UL94
- Contact Material: CuZn, silver-plated and flash gold-plated (3-8 poles), pre-nickel and gold-plated (12 poles)
- Housing Material: Zinc diecast, pre-copper and nickel-plated
- Ring Screw Material: CuZn, nickel-plated
- Insertion Force per Contact: 5.0 N
- Withdrawal Force: 12 N (3-8 poles), 0.9 N (12 poles)
- Tightening Torque Connector: 3 Nm
- Tightening Torque Nut: 13 Nm
- Connectable Conductor Cross-Section: 0.75 mm² (AWG 20), 0.25 mm² (AWG 24)
- Rated Current: 5 A (3-8 poles), 3 A (12 poles)
- Rated Voltage: Up to 300 V depending on version and pollution degree
- Rated Impulse Voltage: 1500 V
- Insulation Resistance: > 100 MΩ
- Material Group: II (IEC)/1 (UL)
Buy the Lumberg Series Industrial Circular Connector: KFV30
Order the Lumberg KFV30 industrial circular connector online today to ensure durable, secure connections in demanding environments. With a robust M16 threaded joint, IP68 protection, and a temperature range of -40°C to +85°C, this connector is perfect for industrial automation, machinery, and control systems. Featuring high-quality materials like zinc diecast housing and gold-plated contacts, it guarantees long-lasting performance. Get yours now and enhance your electrical installations with reliable connection technology.
Buy Lumberg KFV30 now and experience unmatched reliability and performance in industrial wiring and harsh environment applications.
Frequently Asked Questions
Where can I buy LUMBERG KFV30?
You can click on the BUY or RFQ button to purchase KFV30 from an authorized LUMBERG distributor.
How do I troubleshoot issues or seek technical support for part KFV30?
You can download the KFV30 datasheet or visit the LUMBERG website for support.
Who is the manufacturer of KFV30?
LUMBERG
