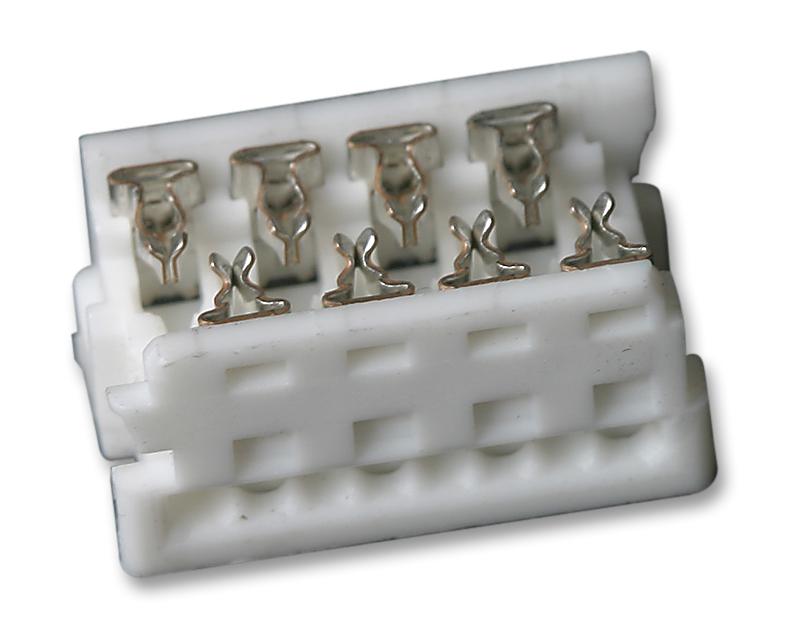

LUMBERG MICA08 Micromodule Connector
The MICA SEL 0.8 AU is a high-performance micromodule connector designed for indirect mating with insulation displacement technology (IDT). It features a temperature range of -40°C to +120°C, using durable materials like PBT and CuSn, with gold and tin plating for reliable contact. Suitable for wire cross-sections AWG 26 and 28, it offers low contact resistance, rated for 1.2A at 32V AC, and complies with UL and IEC standards. Its compact pitch of 1.27 mm makes it ideal for precise, space-saving electronic connections.
LUMBERG MICA08 Micromodule Connector Specifications:
- Temperature range: -40°C to +120°C
- Material: PBT insulation body, CuSn contact spring, gold and tin plating
- Insertion force: <0.8N, Withdrawal force: >0.4N
- Pitch: 1.27 mm
- Wire compatibility: AWG 26 and 28
- Rated current: 1.2A
- Rated voltage: 32 V AC
- Contact resistance: <10mΩ
- Creepage and clearance distance: 0.54 mm
- Insulation resistance: >160 MΩ
- Compliance: UL 94V-0, IEC 60664, UL classification CTI 175
- Housing in bulk or reel packaging
Buy the Buy Lumberg Micromodule Connector Part Number MICA08 Online
Enhance your electronic assemblies with the high-quality Micromodule Connector designed for indirect mating using advanced insulation displacement technology. This reliable connector features a compact 1.27 mm pitch, operates over a temperature range of -40°C to +120°C, and supports wire cross-sections AWG 26 and 28. It ensures low contact resistance, rated for 1.2A at 32V AC, and complies with UL and IEC safety standards. Ideal for space-efficient, durable connections in various electronic applications, available for quick online purchase.
Buy Lumberg MICA08 now and experience reliable, space-saving connections with innovative IDT technology for your electronic projects.
Frequently Asked Questions
Where can I buy LUMBERG MICA08?
You can click on the BUY or RFQ button to purchase MICA08 from an authorized LUMBERG distributor.
How do I troubleshoot issues or seek technical support for part MICA08?
You can download the MICA08 datasheet or visit the LUMBERG website for support.
Who is the manufacturer of MICA08?
LUMBERG
