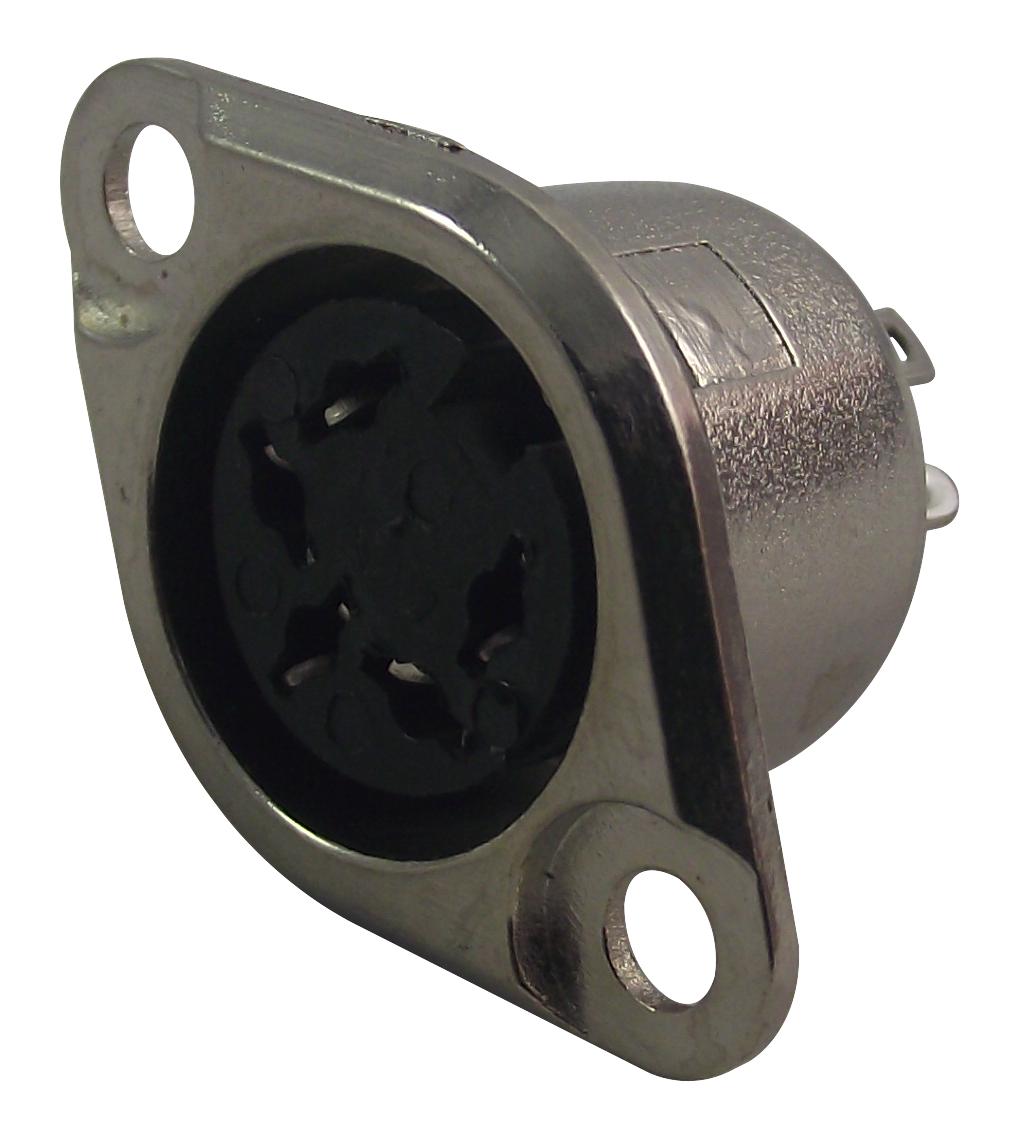

LUMBERG 0103051 DIN Circular Connector
The LUMBERG 0103 05-1 is a DIN circular connector designed for secure and reliable connections in various industrial applications. This connector features a shielded metal housing, a flange, and solder terminals, providing a robust and durable solution. It is suitable for locking mechanisms and operates within a temperature range of -20°C to +85°C. The connector is compatible with DIN plugs 0131 and 0137, offering versatility in system design. Constructed with high-quality materials like ABS, CuZn, and Zn-Legierung, the 0103 05-1 ensures excellent performance and longevity.
LUMBERG 0103051 DIN Circular Connector Specifications:
- Temperature Range: -20 °C/+85 °C
- Contact Material: CuZn, silvered
- Housing Material: Zn-Legierung, vernickelt
- Insulating Body Material: ABS, V0 according to UL 94
- Rated Current: ≤ 4 A
- Rated Voltage: 60 V AC
- Test Voltage: 250 V AC RMS/60 s
- Insulation Resistance: ≥ 100 MΩ
- Contact Resistance (Contact Spring): ≤ 30 mΩ
- Contact Resistance (Housing): ≤ 50 mΩ
- Mating: DIN plugs 0131, 0137
- Packaging: Individual plastic bags, in a cardboard box
