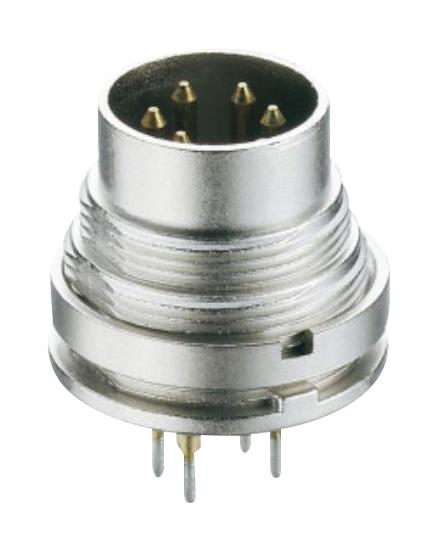

LUMBERG SGR30 Industrial Circular Connector
The product is a circular connector with a threaded joint, rated for industrial use with IP40/IP67/IP68 protection classes. It features an M16x0.75 or M18x0.75 thread, suitable for printed circuit board back side mounting, and can withstand temperatures from -40°C to +85°C. Made from materials like PA GF, CuZn, and zinc diecast, it supports rated currents of 3A to 5A, rated voltages up to 600 V, and overvoltage categories of 1500 V. Designed for reliable electrical connections in demanding environments, it includes various contact pin configurations and accessories.
LUMBERG SGR30 Industrial Circular Connector Specifications:
- Protection Classes: IP40, IP67, IP68
- Temperature Range: -40°C to +85°C
- Material: PA GF (UL94 V-0), CuZn, Zinc Diecast
- Housing Material: PA GF, CuZn, Zn Diecast
- Contact Material: Silver-plated, Gold-plated, Tin-plated
- Tightening Torque: 13 Nm for connector and nut
- Electrical Ratings: 3A to 5A, up to 600 V, impulse voltage up to 1500 V
- Contact Configurations: 2, 3, 4, 5, 6, 7, 8 poles
- Dimensions: Varies with model, typical length approx. 25.4 mm for 3-8 poles, 248 mm for 2 poles, mounting hole diameter 7-10 mm
- Mechanical Data: IP rating only in locked condition, locking via threaded joint
- Environmental Conditions: Suitable for pollution degree 1 and 2
- Certifications: UL, IEC 60529 compliance
Buy the Lumberg SGR30 U–Reliable Circular Connectors for Industrial Applications
Secure your electrical systems with Lumberg industrial circular connectors, designed for PCB back mounting and offering IP67/IP68 protection. Crafted from durable materials like PA GF, CuZn, and zinc diecast, these connectors support rated currents up to 5A and voltages up to 600V. Their temperature tolerance ranges from -40°C to +85°C, making them suitable for harsh environments. With various contact configurations from 2 to 8 poles and compatible accessories, these connectors provide versatile and reliable connections in automation, manufacturing, and control systems. Purchase online now to enhance your project’s reliability.
Buy Lumberg SGR30 now and ensure reliable electrical connections with IP67/IP68 protection and a wide range of pin configurations for demanding environments.
Frequently Asked Questions
Where can I buy LUMBERG SGR30?
You can click on the BUY or RFQ button to purchase SGR30 from an authorized LUMBERG distributor.
How do I troubleshoot issues or seek technical support for part SGR30?
You can download the SGR30 datasheet or visit the LUMBERG website for support.
Who is the manufacturer of SGR30?
LUMBERG
