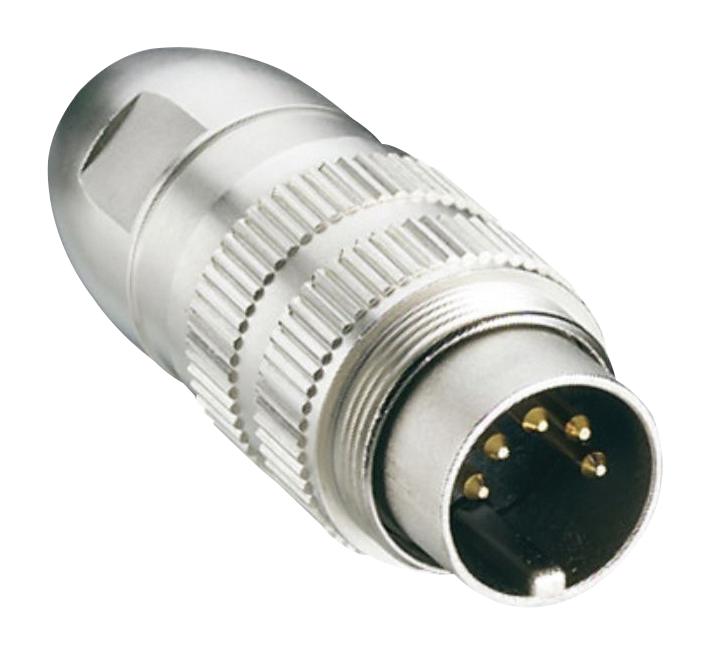

LUMBERG 033108 M16 Circular Connector
The Lumberg 0331 08 is a robust M16 circular connector designed for demanding industrial applications. Its threaded joint provides a secure and reliable connection, while the IP67/IP68 rating ensures protection against dust and water ingress, making it suitable for outdoor and harsh environments. Constructed with a PA GF insulating body and CuZn contacts, this connector offers excellent mechanical strength and electrical performance. It is commonly used in automation, transportation, and power distribution systems where reliable connectivity is essential. Available in various pole configurations to meet diverse application needs.
LUMBERG 033108 M16 Circular Connector Specifications:
- Temperature Range: -40 °C to +85 °C
- Insulating Body Material: PA GF, V-0 (UL94)
- Contact Pin Material: CuZn, silver-plated and flash gold-plated (3-8 poles), CuZn, pre-nickel and gold-plated (12-14 poles)
- Housing Material: CuZn, nickel-plated
- Knurled Screw Material: CuZn, nickel-plated
- Seal Material: NBR
- Tightening Torque (Connector): 1-3 Nm
- Tightening Torque (Nut): 1-3 Nm
- Protection Class: IP68 (IEC 60529, locked condition)
- Connectable Conductor Section: ≤ 0.75 mm² (AWG 20), ≤ 0.25 mm² (AWG 24) (12-14 poles)
- Cable Diameter: 4–8 mm
- Rated Current (3-8 poles): 5 A (at Tamb 40 °C)
- Rated Current (12-14 poles): 3 A (at Tamb 40 °C)
- Rated Voltage: 250 V (specific versions), 60 V (specific versions)
- Rated Impulse Voltage: 2000 V (specific versions), 1000 V (specific versions)
- Insulation Resistance: > 100 MΩ
- Pole Number Options: 3, 4, 5, 6, 7, 8, 12, 14
- Packaging: Sets of individual parts in plastic bags, in a cardboard box
