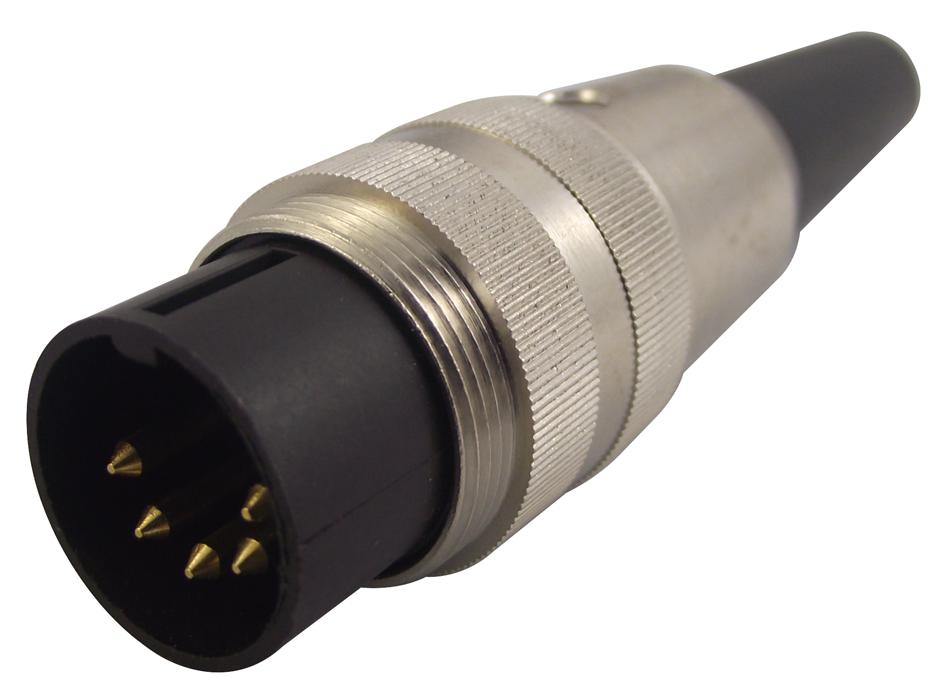

LUMBERG SV50 circular connector
The Lumberg E SV50 circular connector features a straight plug with threaded joint conforming to IEC 61076-2-106 standards, offering IP40 protection. Constructed with a PA GF insulating body and CuZn contact pins that are silver and flash gold-plated, it is ideal for industrial environments requiring reliable connections. This connector supports solder terminals, short bend protection, and accommodates conductors of 0.75 mm² (AWG 20) for 3-8 poles and 0.25 mm² (AWG 24) for 12 poles. Rated for 5 A at 20°C and voltages up to 300 V, it withstands temperatures from -40°C to +85°C, with a nut tightening torque of +3Nm.
LUMBERG SV50 circular connector Specifications:
- Insulating body: PA GF, V-0 according to UL94
- Contact material: CuZn, silver-plated and flash gold-plated (3-8 poles)
- Additional contact: CuZn, pre-nickel and gold-plated (12 poles)
- Ground contact spring: CuZn, pre-nickel and tin-plated
- Housing: CuZn, nickel-plated; Strain relief: steel, nickel-plated
- Knurled screw: CuZn, nickel-plated; Bend protection sleeve: TPE
- Electrical ratings: 5 A at 20°C (3-8 poles), 3 A (12 poles), Voltage: up to 300 V depending on version
- Temperatures: -40°C to +85°C, protection class IP40
- Tightening torque: connector +3Nm, nut +3Nm
- Cable diameter: 6-8 mm; connectable conductors: 0.75 mm² (AWG 20), 0.25 mm² (AWG 24)
Buy the Lumberg SV50 Reliable Circular Connectors for Industrial Applications
Secure your industrial wiring with the Lumberg SV50 circular connector. Engineered for reliable performance, it features a threaded joint, solder terminals, and robust construction suitable for IP40/IP67/IP68 environments. Made with high-quality CuZn contacts, it offers rated currents of up to 5 A and voltages of 300 V, supporting conductors from 0.75 mm² to 0.25 mm². Designed for temperatures from -40°C to +85°C, it ensures durable, safe connections in demanding industrial conditions. Purchase online today for quick delivery and professional-grade performance.
Order your Lumberg Series SV50 connector today and give your projects the dependable quality they deserve, ensuring robust connection with precision engineering.
