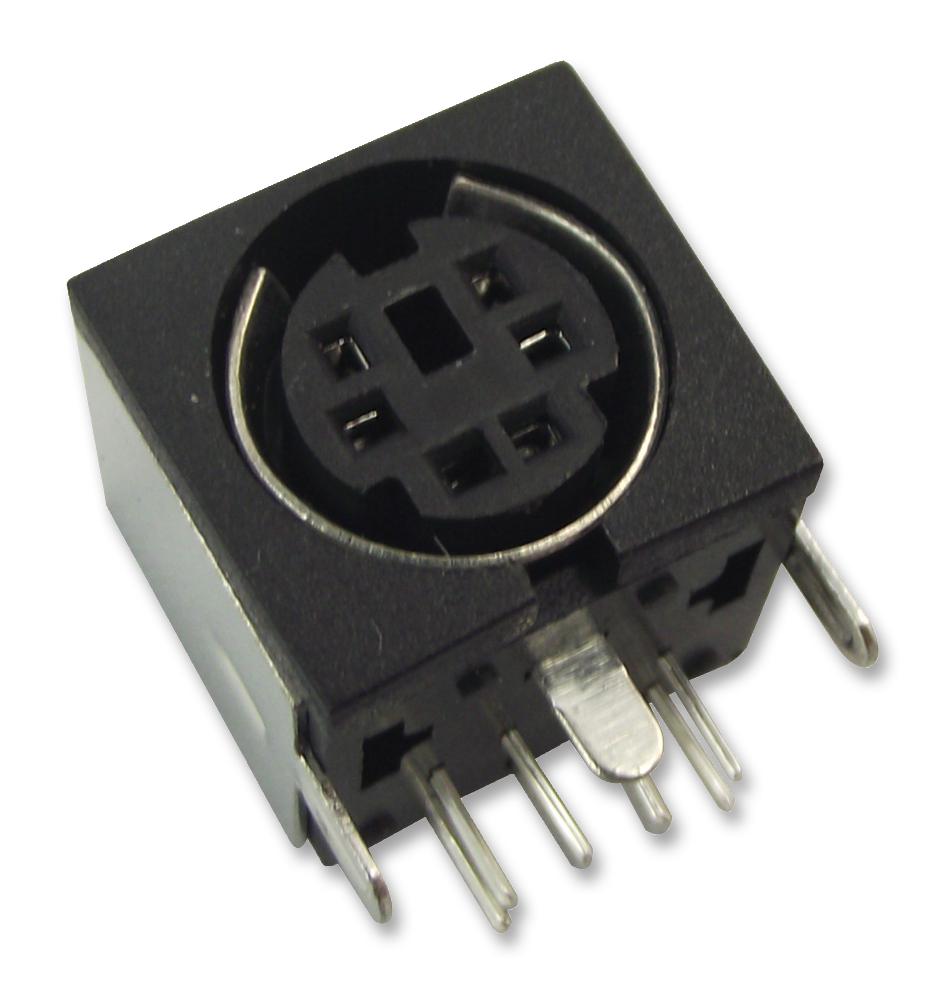

LUMBERG TM0508A6 Miniature PCB Connector
Miniatur-Rundsteckverbinder, shielded, right angle, for printed circuit boards, with high mechanical stability and reliable electrical performance. Crafted from high-quality materials like PBT and CuZn, these miniature connectors operate efficiently within -25°C to 85°C temperature range. They feature flash-gilded contacts, robust housing, and can withstand over 1000 mating cycles. Rated for voltages up to 250 V AC, and currents up to 50 mA, ensuring durability for demanding industrial and electronic applications. Suitable for assembly in compact spaces, combining excellence in mechanical design with electrical reliability.
LUMBERG TM0508A6 Miniature PCB Connector Specifications:
- Temperature Range: -25°C to 85°C
- Material: PBT (Insulating body), CuSn (Contacts), CuZn (Housing)
- Contact Resistance: > 1000
- Rated Current: 50 mA
- Rated Voltage: 250 V AC / < 12 V DC
- Test Voltage: 50 V AC / 60 s
- Insulation Resistance: 100 MΩ
- Insertion Force: 9.8-49 N (+30% after test)
- Withdrawal Force: 7.8-34.3 N (+30% after test)
- Number of Mating Cycles: > 1000
- Housing Material: PBT, UL 94V-0
- Contact Material: CuSn (flash-gilded), silvered/tinned
- Housing: CuZn (tinned)
Buy the Lumberg TM0508A6 – Reliable Miniature PCB Connector for Industrial Applications
Order the Lumberg TM0508A6 miniature PCB connector online today and enjoy quick delivery and competitive pricing. This shielded, right-angle connector is designed for printed circuit boards used in industrial automation, electronics, and instrumentation. With high mechanical stability, over 1000 mating cycles, and rated for 250 V AC and 50 mA, it guarantees durability and reliable electrical contacts. Perfect for tight spaces, it combines quality, precision, and ease of installation, making it an essential part of your electronic and industrial assembly needs.
Buy Lumberg TM0508A6 now and experience unmatched reliability and performance in compact PCB connection solutions.
Frequently Asked Questions
Where can I buy LUMBERG TM0508A6?
You can click on the BUY or RFQ button to purchase TM0508A6 from an authorized LUMBERG distributor.
How do I troubleshoot issues or seek technical support for part TM0508A6?
You can download the TM0508A6 datasheet or visit the LUMBERG website for support.
Who is the manufacturer of TM0508A6?
LUMBERG
