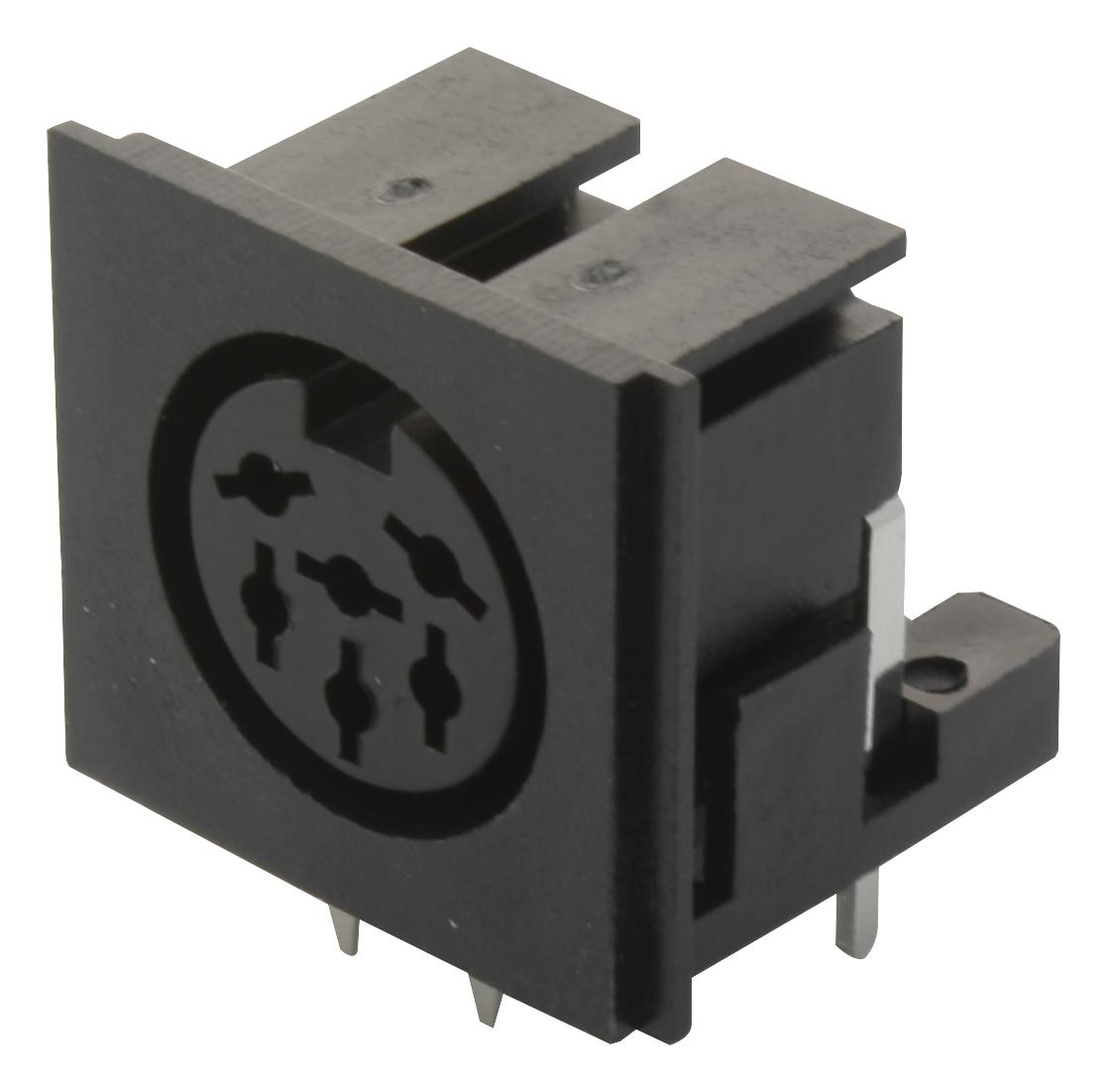

LUMBERG 010506 DIN Circular Connector
The Lumberg 0105 06 is a DIN circular connector specifically engineered for integration into printed circuit boards. Its angled configuration facilitates space-saving designs, while the integrated ground contact ensures proper grounding and electrical safety. The connector's robust construction and locking mechanism provide secure and reliable connections in industrial automation, control systems, and other demanding applications. It is compatible with DIN plugs 0131 and 0137, offering versatility in system design. Manufactured with high-quality materials like PBT and CuZn, the 0105 06 ensures durability and consistent performance.
LUMBERG 010506 DIN Circular Connector Specifications:
- Temperature Range: -20 °C/+70 °C
- Contact Carrier Material: PBT, V0 (UL 94)
- Contact Spring Material: CuZn, tin-plated
- Ground Contact Material: CuZn, tin-plated
- Cover Material: PBT, V0 (UL 94)
- Insertion Force: 4.9–49 N
- Withdrawal Force: 4.9–49 N
- Mating Cycles: 5000
- Compatible Plugs: DIN 0131, 0137
- Contact Resistance: ≤ 30 mΩ
- Rated Current: 4 A
- Rated Voltage: 24 V AC
- Test Voltage: 500 V AC/60 s
- Insulation Resistance: ≥ 100 MΩ
- Pin Configuration: 6
- Package Unit: 100
