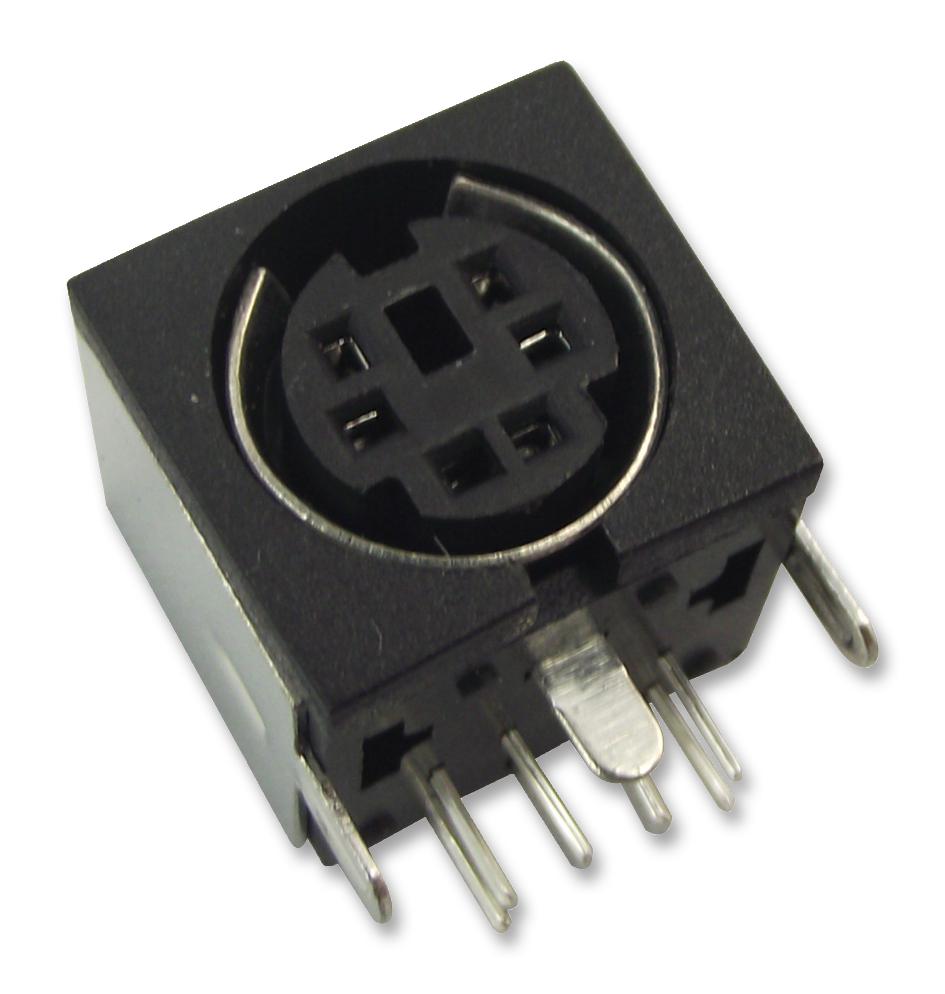

LUMBERG TM0508A8 Miniature Circular Connector
The TM0508A8 miniature circular connector is a shielded, right-angle PCB socket designed for reliable connections in electronic applications. Constructed with a PBT insulating body, copper alloy contact bushes, and tin-plated zinc housing, it supports temperatures from -25 °C to +80 °C. It features a mounting force of 9.8-49 N, withdrawal force of 7.8-34.3 N, and over 1000 mating cycles. With electrical ratings of less than 1A current and up to 100V, it ensures efficient electronic connections for various industrial and electronic projects.
LUMBERG TM0508A8 Miniature Circular Connector Specifications:
- Temperature range: -25 °C to +80 °C
- Insulating body: PBT, UL 94 VO
- Contact material: Copper alloy, silver/tin/nickel-plated
- Housing: Zinc, tin-plated
- Insertion force: 9.8-49 N (+30% after test)
- Withdrawal force: 7.8-34.3 N (+30% after test)
- Number of mating cycles: >1000
- Contact resistance: <50 mΩ
- Rated current: <1 A
- Rated voltage: <100 V
- Test voltage: 250 V AC for 60 seconds
- Insulation resistance: 100 MΩ
Buy the Buy Lumberg Miniatur-Rundsteckverbinder Part Number TM0508A8 Online
Enhance your electronic assemblies by purchasing the Lumberg TM0508A8 miniature circular connector online. It features a shielded, right-angle design with durable materials like copper alloy and zinc housing. Suitable for printed circuit boards, it withstands temperatures from -25°C to +80°C, supporting over 1000 mating cycles. With electrical ratings below 1A and 100V, it guarantees efficient, safe connections in industrial, automation, or electronic devices. Get this reliable connector now for superior performance and easy installation.
Order your Lumberg Series TM0508A8 miniature shielded connector today and ensure high-quality, reliable electronic connections for your projects.
Frequently Asked Questions
Where can I buy LUMBERG TM0508A8?
You can click on the BUY or RFQ button to purchase TM0508A8 from an authorized LUMBERG distributor.
How do I troubleshoot issues or seek technical support for part TM0508A8?
You can download the TM0508A8 datasheet or visit the LUMBERG website for support.
Who is the manufacturer of TM0508A8?
LUMBERG
