LUMBERG KGR80 circular PCB socket
The KGR80 connector is a robust circular PCB socket with a threaded joint, conforming to IEC 61076-2-106 standards. Designed for back-side mounting, it features a pre-nickel, gold-plated contact system that ensures reliable electrical connectivity in industrial environments. Operating reliably between -40°C and +85°C, it accommodates up to 8 poles with a rated current of 5A. Its zinc diecast housing provides excellent mechanical protection, and it is suitable for applications requiring IP40 protection.
LUMBERG KGR80 circular PCB socket Specifications:
- Environmental Conditions: Temperature range -40°C to +85°C
- Housing Material: Zinc diecast, pre-copper, nickel-plated
- Contact Material: CuZn, pre-nickel and gold-plated, tin-plated in solder area
- Number of Poles: 8
- Rated Current: 5A at 40°C
- Rated Voltage: 250 V (pollution degree 2)
- Contact Resistance: less than 5 mΩ
- Insertion Force: 3-8 poles, 5.0 N
- Withdrawal Force: 2.0 N
- Tightening Torque: 13 Nm
- Protection Class: IP40
- Dimensions: Height 78mm, width 8.2mm, depth 8.2mm
- Operating Conditions: Suitable for back side mounting on printed circuit boards

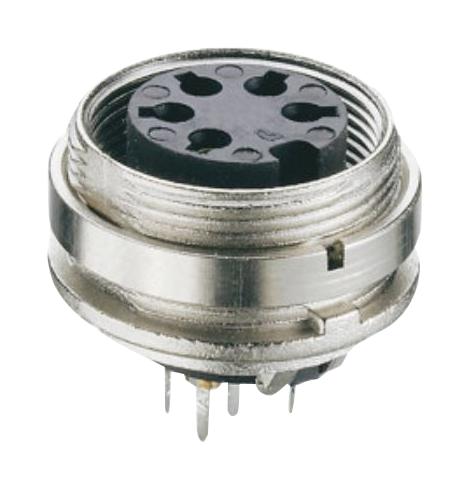

Buy the Buy Lumberg PCB Socket Part Number KGR80 Online
Enhance your industrial designs with the Lumberg PCB socket KGR80, featuring a threaded joint for secure mounting and IP40 protection. This 8-pole connector supports a rated current of 5A and is made with durable zinc diecast housing. Its reliable contact system ensures consistent electrical performance in demanding environments. Easy to install on printed circuit boards, this connector offers excellent mechanical and environmental protection suitable for a wide range of automation and control applications. Purchase online now for quality you can trust.
Order your Lumberg SeriesKGR80 connector today and ensure dependable, high-quality industrial PCB connections with reliable threading and IP40 protection.
Frequently Asked Questions
Where can I buy LUMBERG KGR80?
You can click on the BUY or RFQ button to purchase KGR80 from an authorized LUMBERG distributor.
How do I troubleshoot issues or seek technical support for part KGR80?
You can download the KGR80 datasheet or visit the LUMBERG website for support.
Who is the manufacturer of KGR80?
LUMBERG
