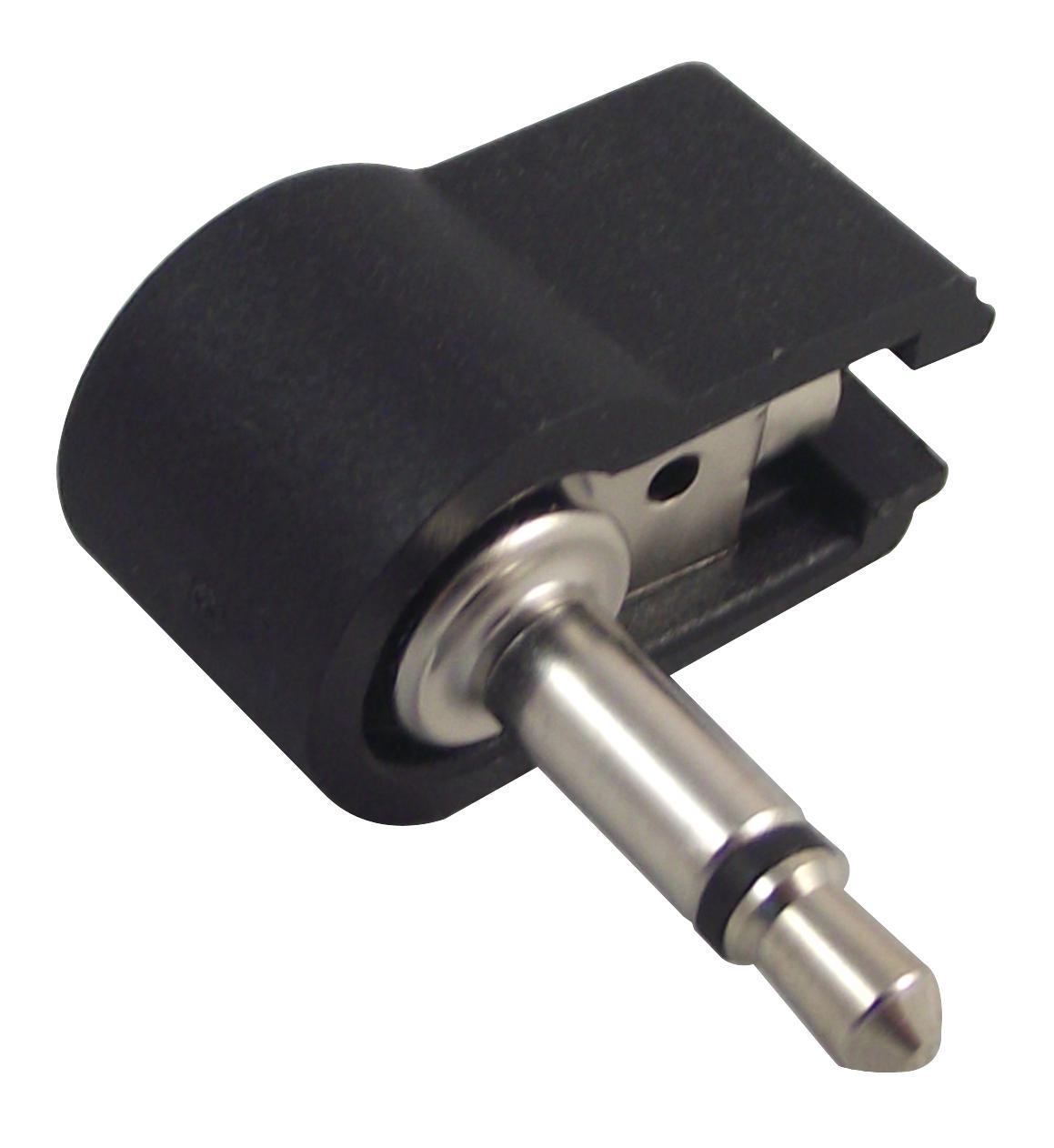

LUMBERG WKLS2 Audio Jack Connector
This product is a 3.5 mm mono jack connector designed according to JIS C 6560 standards. It features an angled solder terminal for easy installation, with a temperature range from -20°C to +70°C. Made with durable materials including ebonite insulator, nickel-plated copper zinc contact, steel, and a PE housing, ensuring robustness. Suitable for audio equipment and electronic devices, it supports a rated current of 1A and rated voltage of 34V AC/DC. It is compatible with various jack sockets and provides reliable electrical performance with insulation resistance exceeding 100 MΩ, making it ideal for professional and hobbyist audio connections.
LUMBERG WKLS2 Audio Jack Connector Specifications:
- Temperature Range: -20°C to +70°C
- Material: Ebonite insulator, Nickel-plated CuZn contact, Steel, PE housing
- Electrical Rating: 1A, 34V AC/DC, Test voltage: 500 V/60 s, Insulation resistance: >100 MΩ
- Mechanical Compatibility: Mating with jack sockets 1502 03, 1503 06, 1503 12, KLB 2, KLK 2, KLK 22
- Connector Type: Male jack, 3.5 mm, mono, angular, solder terminals
- Dimensions: Standard 3.5 mm audio jack, angular design for easy connection
- Operating Temperature: -20°C to +70°C
Buy the Buy Lumberg Jack Connectors Part Number WKLS2 Online
Enhance your audio projects with the Lumberg Series WKLS2 angled mono jack connector, featuring durable construction, reliable electrical ratings, and a compact design for easy installation. Perfect for professional audio equipment and hobbyist use, this 3.5 mm connector supports a maximum current of 1A and voltage of 34V AC/DC. Its sturdy materials and angular solder terminals ensure secure and long-lasting connections. Easily order online and get seamless connectivity for your audio and electronic devices, backed by trusted quality and performance.
Order your Lumberg Series WKLS2 angled mono jack connector today and ensure reliable, high-quality audio connections with ease.
