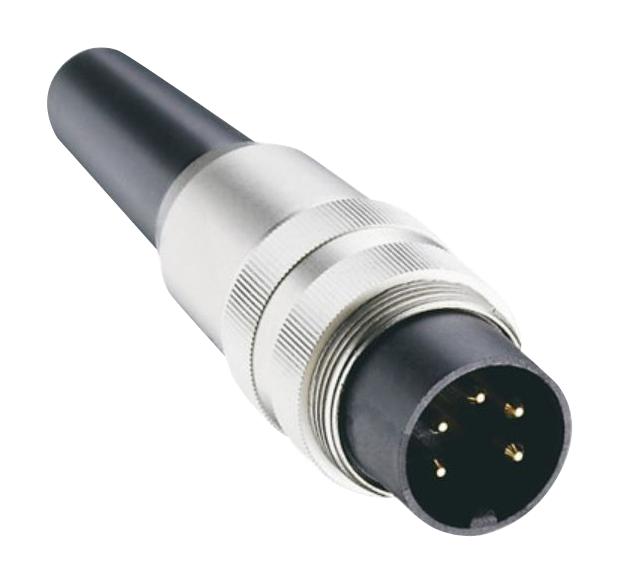

LUMBERG SV120 Industrial Circular Connector
The product is a circular connector with a threaded M16 joint conforming to IEC 61076-2-106 standards, offering IP40/IP67/IP68 protection levels. Designed for industrial applications, it features solder terminals, long bend protection, and a robust housing. Made with materials such as PA GF insulating body, copper-zinc contact pins, and nickel-plated steel strain relief, it supports a temperature range of -40°C to +85°C and a rated current of 5A for 3-8 poles. The connector is suitable for cable diameters of 4-6 mm and complies with UL94 V-0 flammability standards, ensuring durability and safety in harsh environments.
LUMBERG SV120 Industrial Circular Connector Specifications:
- M16 x 0.75 thread, IP40/IP67/IP68 protection levels, operating temperature -40°C to +85°C, rated current 5A (3-8 poles), rated voltage 300V (pollution degree 1), cable diameter 4-6mm, material including PA GF housing, CuZn contact pins, nickel-plated steel strain relief, UL94 V-0 flammability standard, mechanical tightening torque +3Nm, conductors for soldering 0.75mm² (AWG 20), 0.25mm² (AWG 24), suitable for harsh industrial environments, robust and reliable connection, compatible with various accessories, preassembled or loose parts depending on packaging.
Buy the Lumberg Series Circular Connector: SV120
Experience dependable connectivity with the Lumberg SeriesSV120 industrial circular connector. Perfect for harsh environments, it features IP67/IP68 sealing, a sturdy M16 threaded joint, solder terminals, and long bend protection. Made with high-quality materials, it supports up to 5A current and cable diameters of 4-6mm. Easy to install with a torque of 3Nm, this connector ensures robust, secure connections essential for automation and industrial systems. Order online now to enhance your project’s reliability and safety.
Order your Lumberg SeriesSV120 circular connector today and give your industrial projects the reliable, durable connection they deserve.
Frequently Asked Questions
Where can I buy LUMBERG SV120?
You can click on the BUY or RFQ button to purchase SV120 from an authorized LUMBERG distributor.
How do I troubleshoot issues or seek technical support for part SV120?
You can download the SV120 datasheet or visit the LUMBERG website for support.
Who is the manufacturer of SV120?
LUMBERG
