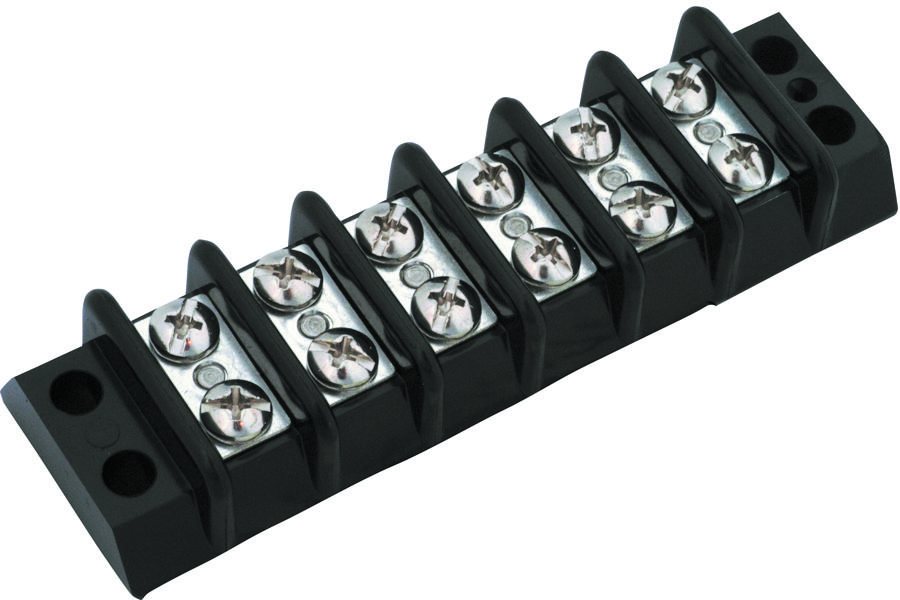

MARATHON/KULKA 672GP12 Terminal Block Closed Back
The Marathon/Kulka 672-GP-12 terminal block is a robust and reliable solution for connecting wires in industrial environments. Designed with a closed-back construction, it provides enhanced safety and protection against accidental contact. The block is rated for 30 amps and 600 volts AC/DC, ensuring efficient and safe power transmission. Constructed with tin-plated brass contacts and a phenolic insulator base, it offers excellent conductivity and insulation properties. UL and CSA certifications guarantee compliance with industry standards, making it a dependable choice for factory and field wiring applications. Available with various pole configurations to meet diverse project needs.
MARATHON/KULKA 672GP12 Terminal Block Closed Back Specifications:
- Wire Range: #10 - #14 AWG (solid recommended)
- Application Torque: 20 in. lbs
- Current Rating: 30A
- Voltage Rating: 600 Volts AC/DC
- Short Circuit Current Rating: 10,000A
- Storage and Transportation Temperature Range: -35°C to 110°C (-31°F to 230°F)
- Maximum Insulator Base Temperature: 150°C (302°F)
- Flammability Rating: UL 94V-0
- Connector Material: Brass, tin plated
- Insulator Base Material: Phenolic
- Drive Screw Material: Stainless steel
- Screw Material: Steel, nickel plated
- UL Listing: UL 1059
- CSA Certification: CSA C22.2 No. 158
- CE Compliance: IEC 60947-7-1
- Number of Poles: 12
