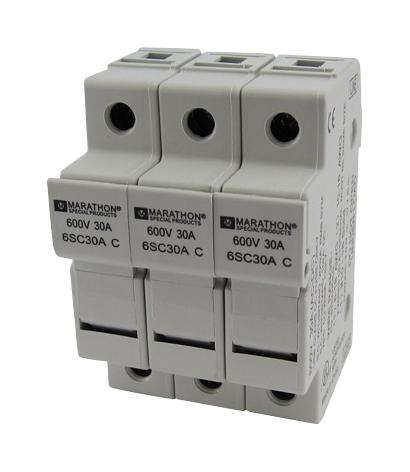

MARATHON/KULKA 6SC30A2C 30 Amp Fuse Holder
The Marathon/Kulka 6SC30A2C enclosed fuse holder is designed for applications requiring reliable overcurrent protection. It is rated for 30 amps at 600 volts AC/DC and features a 200kA withstand rating. Constructed with a glass-filled polyamide insulator base, plated copper fuseclips and contacts, and plated steel terminals, this fuse holder offers durability and safety. It is cULus Listed, CE compliant, and IP20 rated, making it suitable for a wide range of industrial and commercial environments. The fuse holder is DIN-Rail mountable and includes accessories for ganging multiple poles.
MARATHON/KULKA 6SC30A2C 30 Amp Fuse Holder Specifications:
- Amps: 30 Amps max
- Voltage: 600 Volts (AC/DC)
- Withstand Rating: 200kA (SC)
- Agency Compliance: cULus Listed (IZLT.E35113), CE compliant (IEC 60947-1), IEC 60529 (IP20)
- Insulator Base Material: Glass filled polyamide
- Insulator Base Flammability Rating: UL94 V-2
- Insulator Base Temperature Rating: -40°C to 130°C (UL RTI)
- Fuseclips & Contacts Material: Plated copper
- Terminal Box Material: Plated steel
- Wire Range (Line/Load): #6-18 AWG CU
- Torque (Line/Load): 18 lbf·in (2 N·m)
- Wires/Terminal (Line/Load): 1-2
- Wire Class (UL): B, C, K
- Wire Strip Length: 1/2"
- Terminal Screw Drive: Pozidriv style Phillips-Slot
- DIN-Rail Mounting: 35mm wide rail (MN35-2)
- End Brackets: MSK35
- Pin Kit: EFH-MCCK-C (handle pins and body clips)
Buy the 6SC30A2C MARATHON/KULKA 30 Amp Fuse Holder | myMectronic
Purchase the Marathon/Kulka 6SC30A2C fuse holder securely online for reliable overcurrent protection.
Buy Now
Frequently Asked Questions
Where can I buy MARATHON/KULKA 6SC30A2C?
You can click on the BUY or RFQ button to purchase 6SC30A2C from an authorized MARATHON/KULKA distributor.
How do I troubleshoot issues or seek technical support for part 6SC30A2C?
You can download the 6SC30A2C datasheet or visit the MARATHON/KULKA website for support.
Who is the manufacturer of 6SC30A2C?
MARATHON/KULKA
