MAXIM INTEGRATED / ANALOG DEVICES DG419CY Analog Switch
The DG419CY is a precision CMOS SPDT analog switch designed for high-performance switching applications. It features guaranteed on-resistance matching, low charge injection, low leakage current, and operation over a wide voltage range of +4.5V to +20V. Suitable for sample-and-hold circuits, communication systems, test equipment, and military radios, the DG419CY provides fast switching times under 175ns, excellent off-leakage characteristics, and robust ESD tolerance of at least 2000V. Its monolithic design, low power consumption, and compatibility with TTL/CMOS logic make it ideal for demanding analog switching environments.
MAXIM INTEGRATED / ANALOG DEVICES DG419CY Analog Switch Specifications:
- Operation Voltage: +4.5V to +20V
- On-Resistance: Typically 45Ω at V+ = 15V, V- = -15V
- On-Resistance Match: 3Ω max between channels
- Flatness of On-Resistance: 4Ω max over signal range
- Charge Injection: 10pC max
- Leakage Current: Less than 5nA at +85°C
- Switching Times: Less than 175ns for turn-on, less than 145ns for turn-off
- ESD Tolerance: 2000V minimum
- Analog Signal Range: 0V to 15V
- Power Consumption: Approximately 35μW
- Temperature Range: -40°C to +85°C
- Package Options: 8-Pin Plastic DIP, SO, or Dice
- Designed for high-speed, low-leakage switching in complex analog circuits

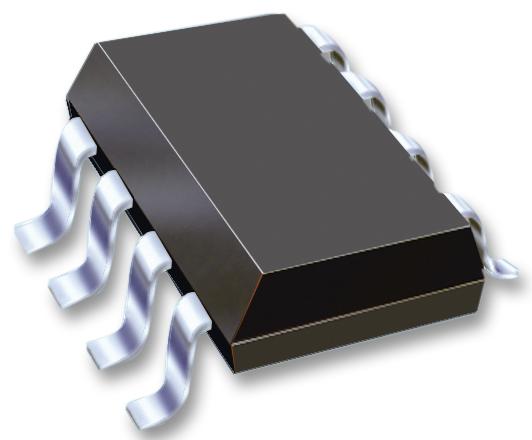

Buy the Buy Maxim DG419CY Part Number DG419CY Online
Experience reliable high-speed switching with the Maxim DG419CY, a CMOS precision SPDT switch featuring guaranteed on-resistance matching, minimal charge injection, and low leakage. Perfect for signal routing, sample-and-hold systems, and communication devices, this switch supports operation from +4.5V to +20V, ensuring compatibility with various systems. Its low power consumption and robust ESD tolerance of 2000V make it ideal for demanding environments. Purchase online now to integrate precision switching into your designs quickly and confidently.
Get Maxim DG419CY today—built for high-precision analog switching and long-lasting durability.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES DG419CY?
You can click on the BUY or RFQ button to purchase DG419CY from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part DG419CY?
You can download the DG419CY datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of DG419CY?
MAXIM INTEGRATED / ANALOG DEVICES
