MAXIM INTEGRATED / ANALOG DEVICES MAX4071ATAT High-Side Current Sense Amplifier
The MAX4071ATA+T from Maxim Integrated is a bidirectional high-side current sense amplifier housed in an 8-pin TQFN package. Designed for monitoring battery charge and discharge currents in portable devices such as notebooks and cell phones, it features a wide input common-mode voltage range of 1.35V to 24V, independent of the supply voltage. This ensures accurate current sensing even in deep discharge conditions. The amplifier operates at a supply voltage of 2.7V to 24V, with a typical supply current of 100µA that reduces to 10µA in shutdown mode. It includes an external current-sense resistor and a gain select pin to choose between 50V/V and 100V/V gain configurations. A single output pin indicates whether the current is charging or discharging, eliminating the need for additional polarity detection circuitry. The device offers a total output error of less than 1.5%, an internal 1.5V reference, and excellent performance metrics such as a CMRR of 120dB, input bias current of 2.4µA, and a PSRR of 120dB. It also provides load regulation of 2mV/mA (0 to 500µA) and 4mV/mA (0 to -100µA) with a bandwidth of 100kHz at a gain of 50V/V, making it ideal for precise current measurement applications.
MAXIM INTEGRATED / ANALOG DEVICES MAX4071ATAT High-Side Current Sense Amplifier Specifications:
- Package: 8-pin TQFN
- Supply Voltage Range: 2.7V to 24V
- Input Common-Mode Voltage Range: 1.35V to 24V
- Gain Select: 50V/V or 100V/V
- Total Output Error: Less than 1.5%
- Internal Reference: 1.5V
- CMRR: 120dB
- Input Bias Current: 2.4µA
- PSRR: 120dB
- Load Regulation: 2mV/mA (0 to 500µA), 4mV/mA (0 to -100µA)
- Bandwidth: 100kHz at Gain of 50V/V
- Shutdown Current: 10µA
- Operating Temperature: -40°C to +125°C

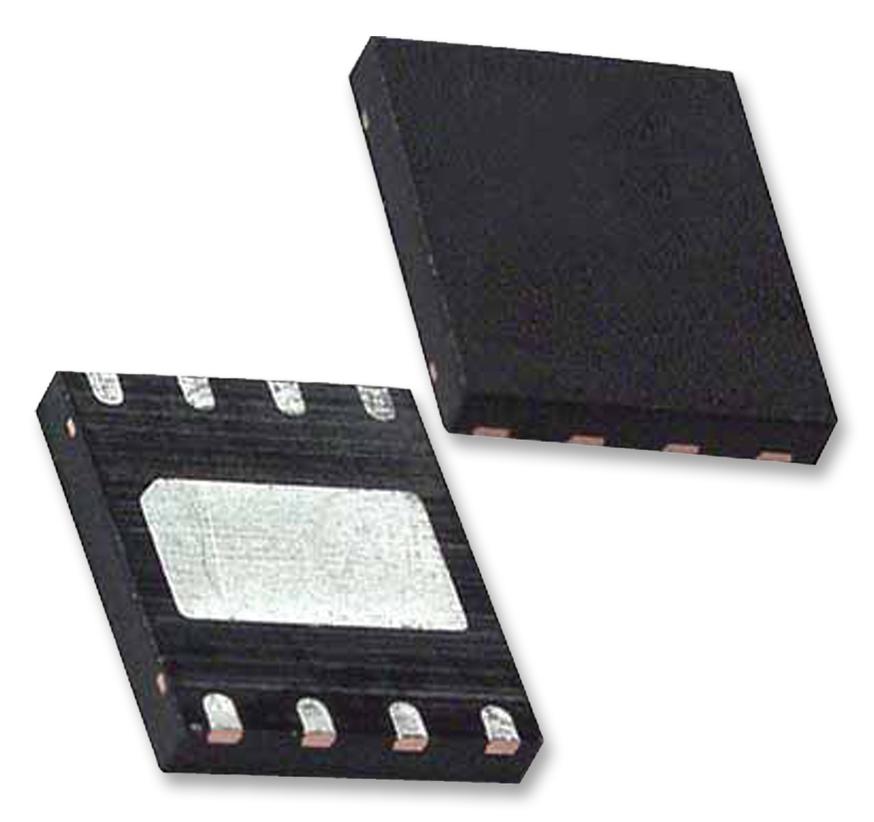

Buy the Buy Maxim MAX4071ATAT Part Number MAX4071ATAT Online
Purchase the Maxim MAX4071ATAT high-side current sense amplifier online today. This compact, 8-pin TQFN device is engineered for accurate current monitoring in battery-powered devices like notebooks and smartphones. It features a wide input common-mode voltage of 1.35V to 24V, ensuring precision even in deep discharge states. With an internal 1.5V reference, low total error under 1.5%, and low power consumption, it’s ideal for power management, fuel gauging, and motor control applications where reliable, high-accuracy current sensing is essential.
Order your Maxim Series MAX4071ATAT today and achieve precise current monitoring in portable devices with high accuracy and reliability.
